Electrical System
400Ah LiFePO4 battery bank with Victron MultiPlus 3000 inverter, solar charging, and comprehensive power distribution for off-grid living.
Specifications
Components
Every part that makes this system work

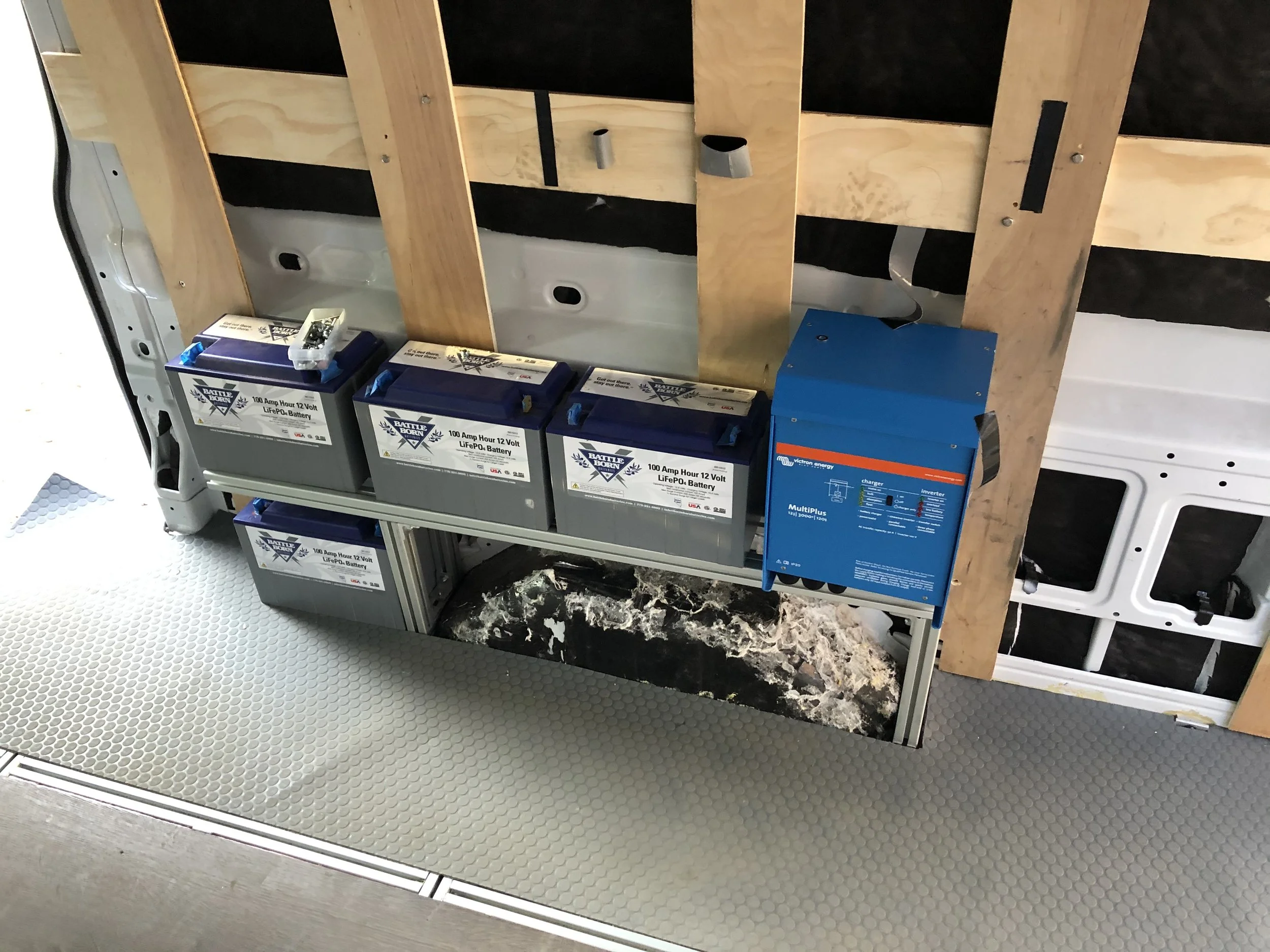

Battle Born LiFePO4 Batteries
Specs: 100Ah each, 12V, 3000+ cycle lifespan
"Primary energy storage for all electrical systems"
Victron MultiPlus 3000 Inverter/Charger
Specs: 3000W continuous, 6000W peak, automatic transfer switch
"Converts 12V DC to 120V AC, charges from shore power"
Victron MPPT Solar Controller
Specs: Maximum power point tracking for optimal solar efficiency
"Manages solar panel charging of battery bank"

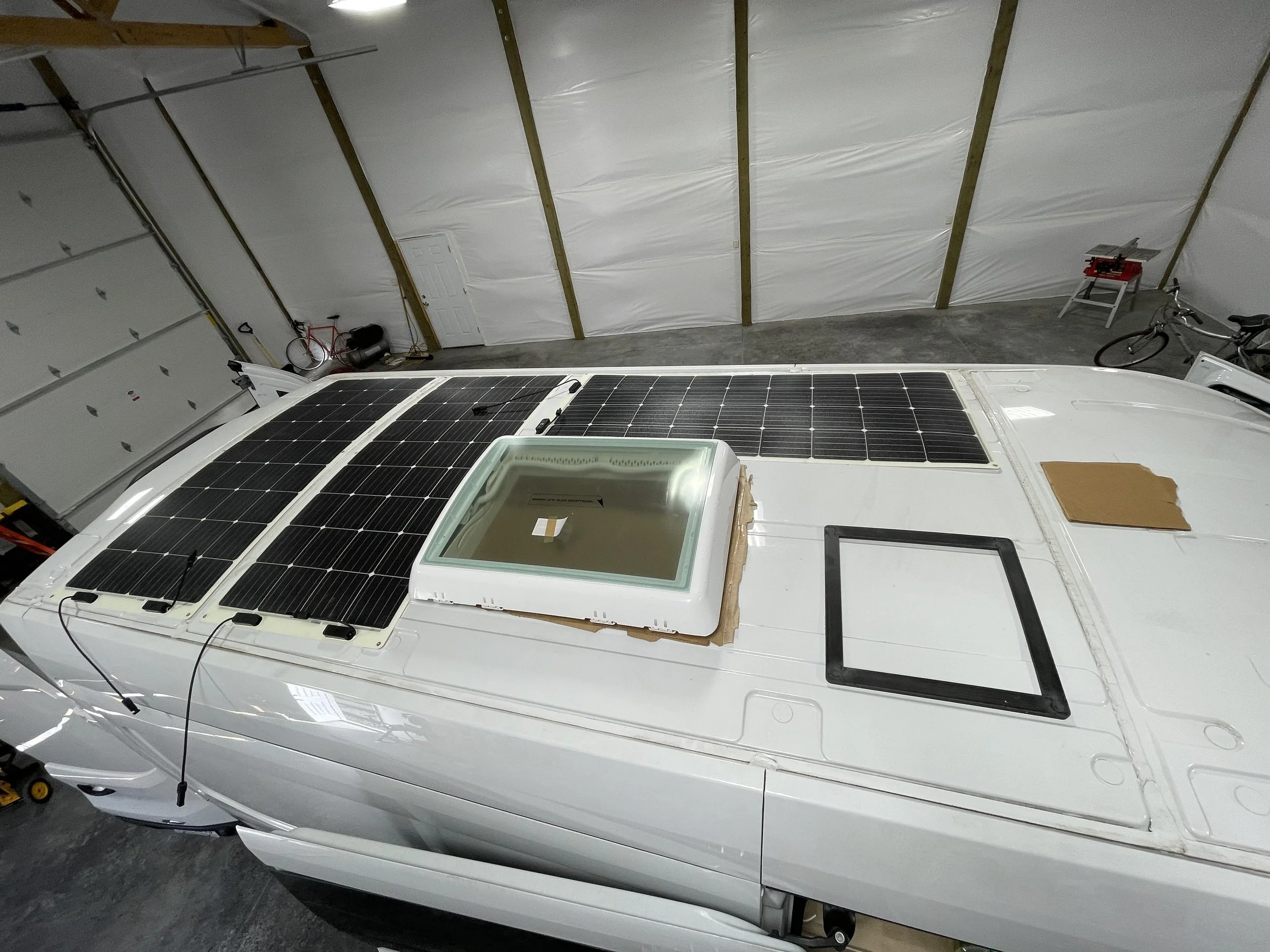

Solar Panels
Specs: 3 x 175W panels, 525W total array
"Generate power from sunlight for off-grid capability"
Heated Floor
Specs: Electric heating pad system
"Provides floor heating for cold weather comfort"
Wiring & Distribution
Specs: 4/0 to 18 AWG, fuses, breakers, bus bars
"Safe power distribution throughout the van"
Power Analysis
Major Loads
Daily Usage
~2,000-3,000Wh typical
