Framing

The Foundation

I chose 80/20 extruded t-slot aluminum for the van's interior framework. This material is strong, light, easy to cut, and the t-slot allows for change

• which is crucial when you're learning as you build.



  Process Overview

  The construction followed three key steps:

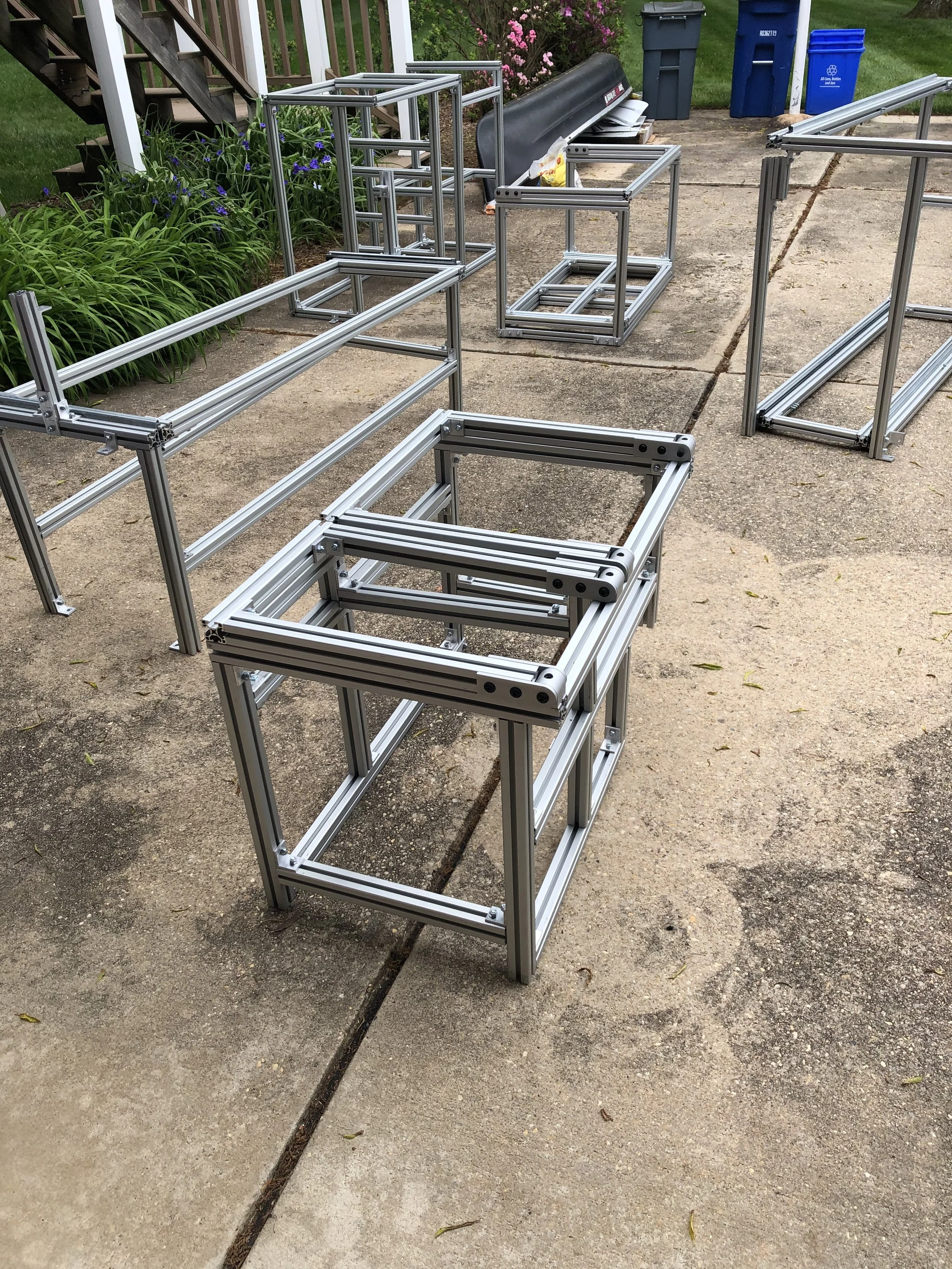

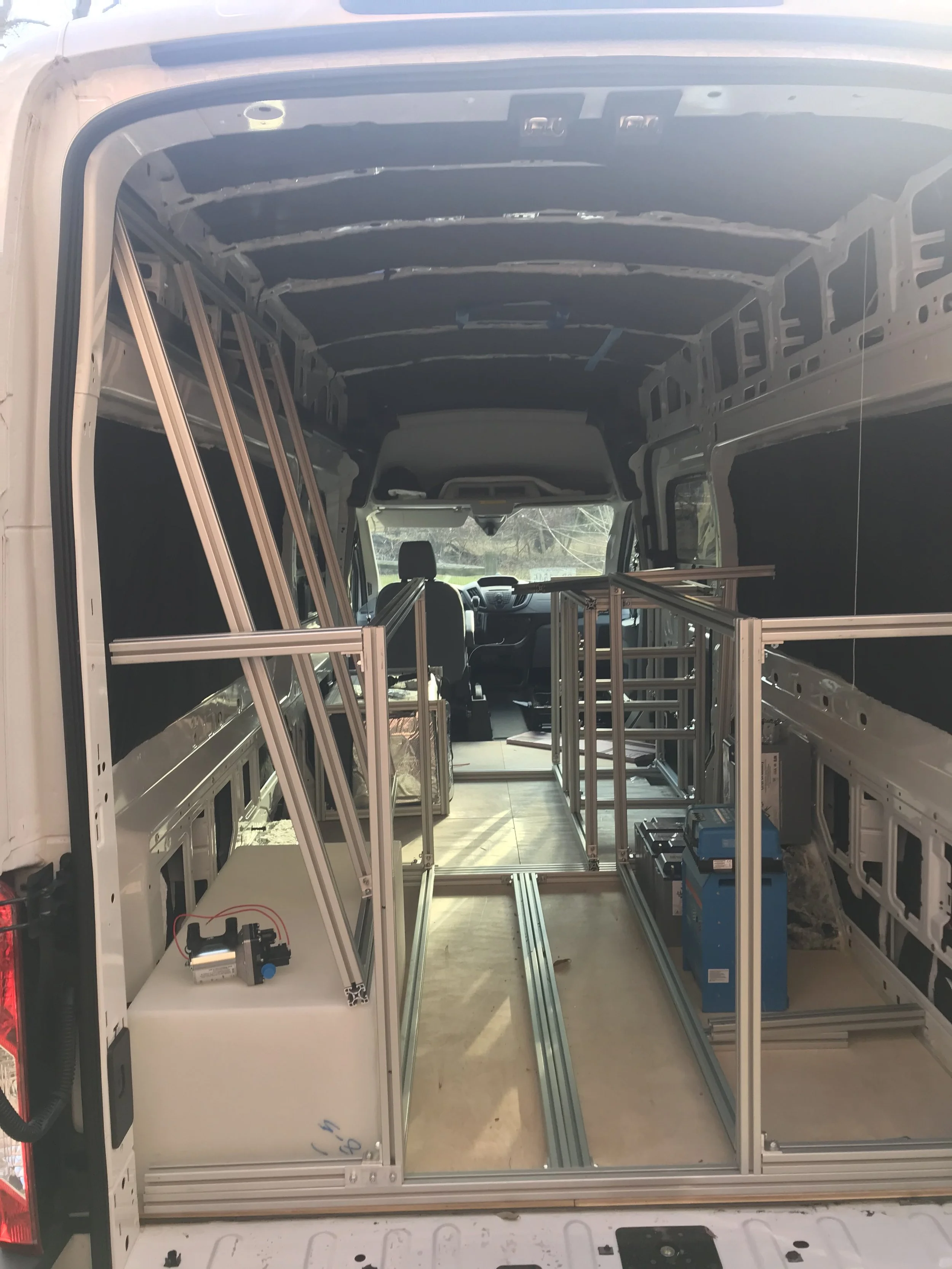

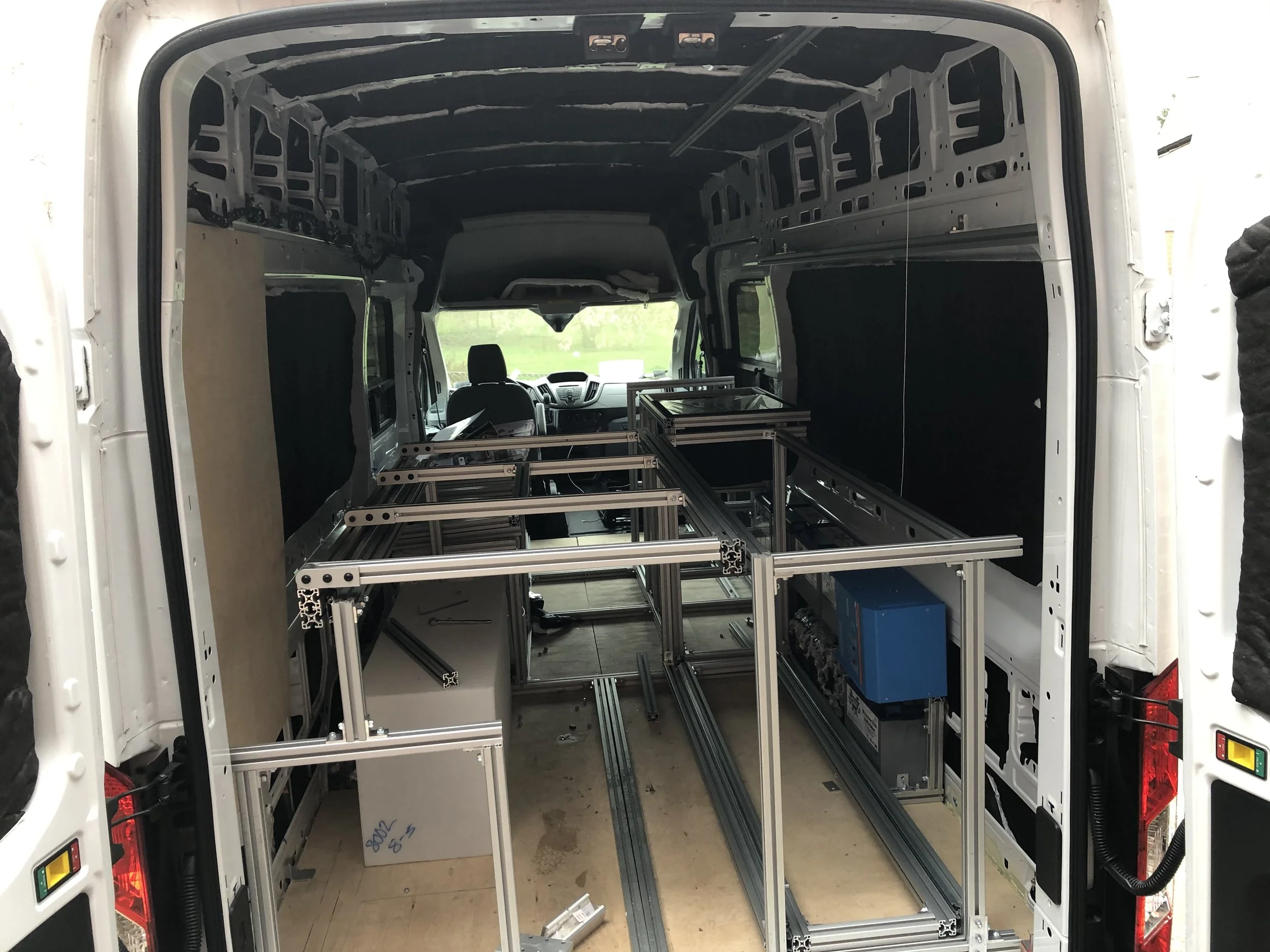

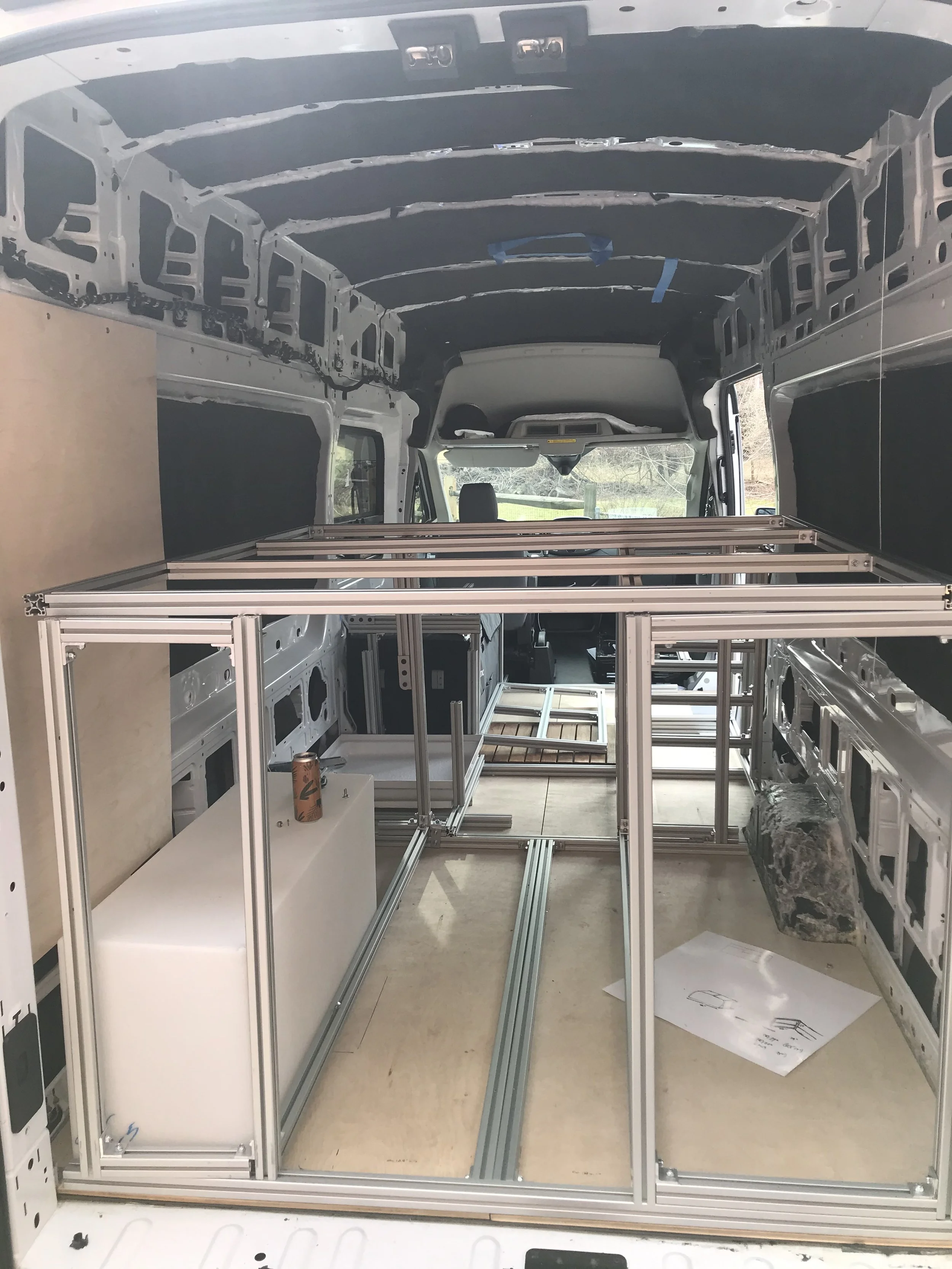

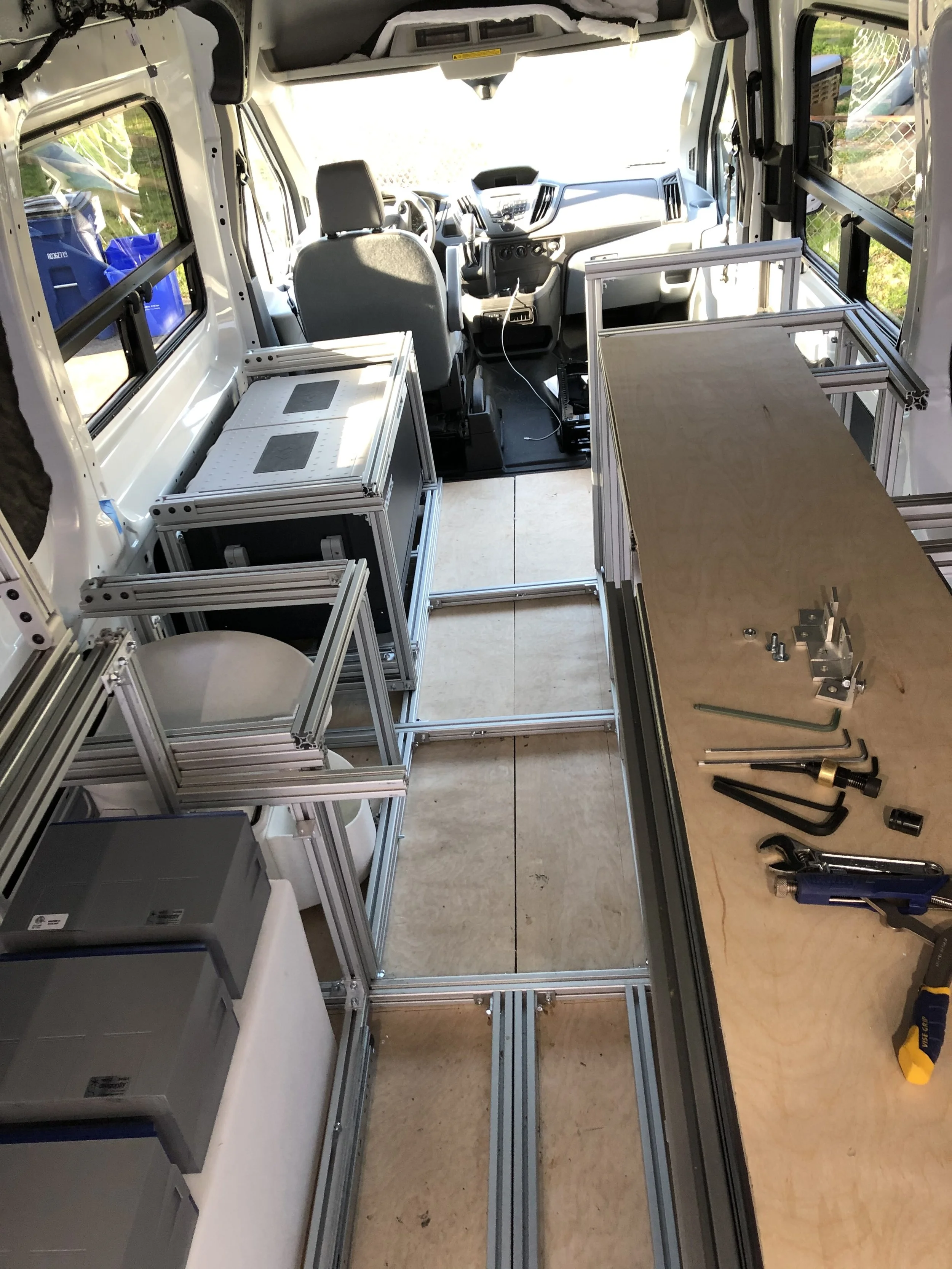

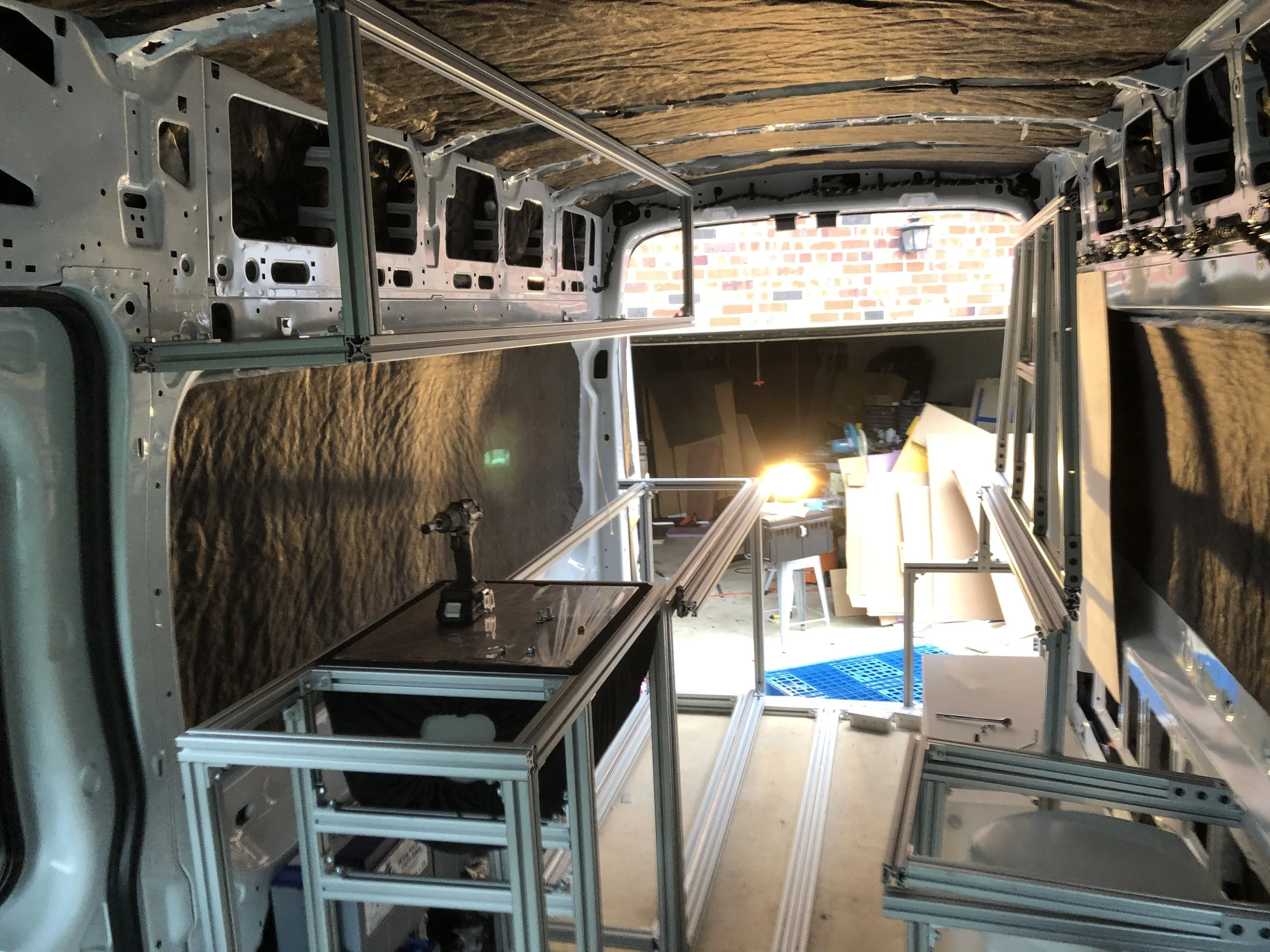

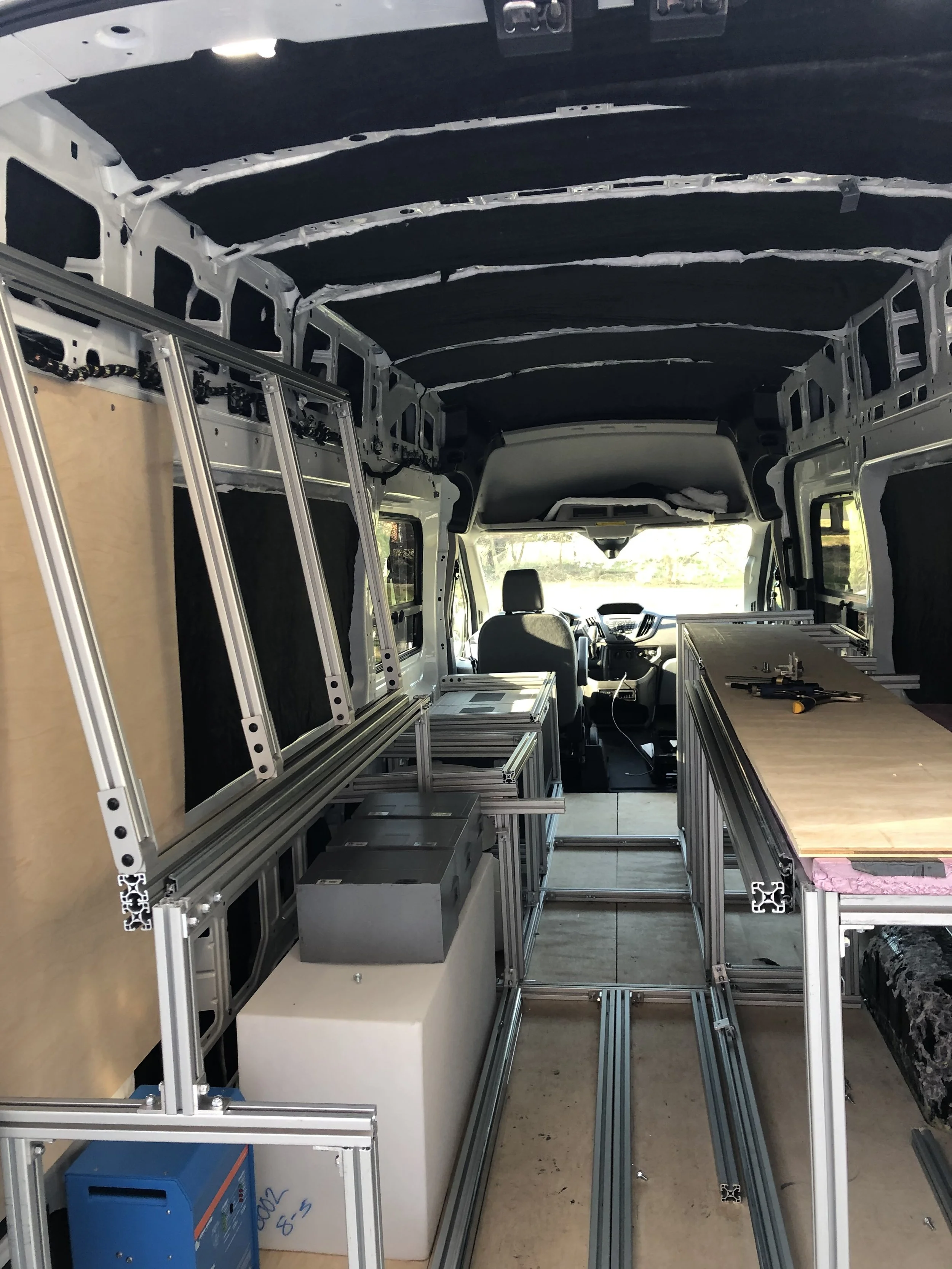

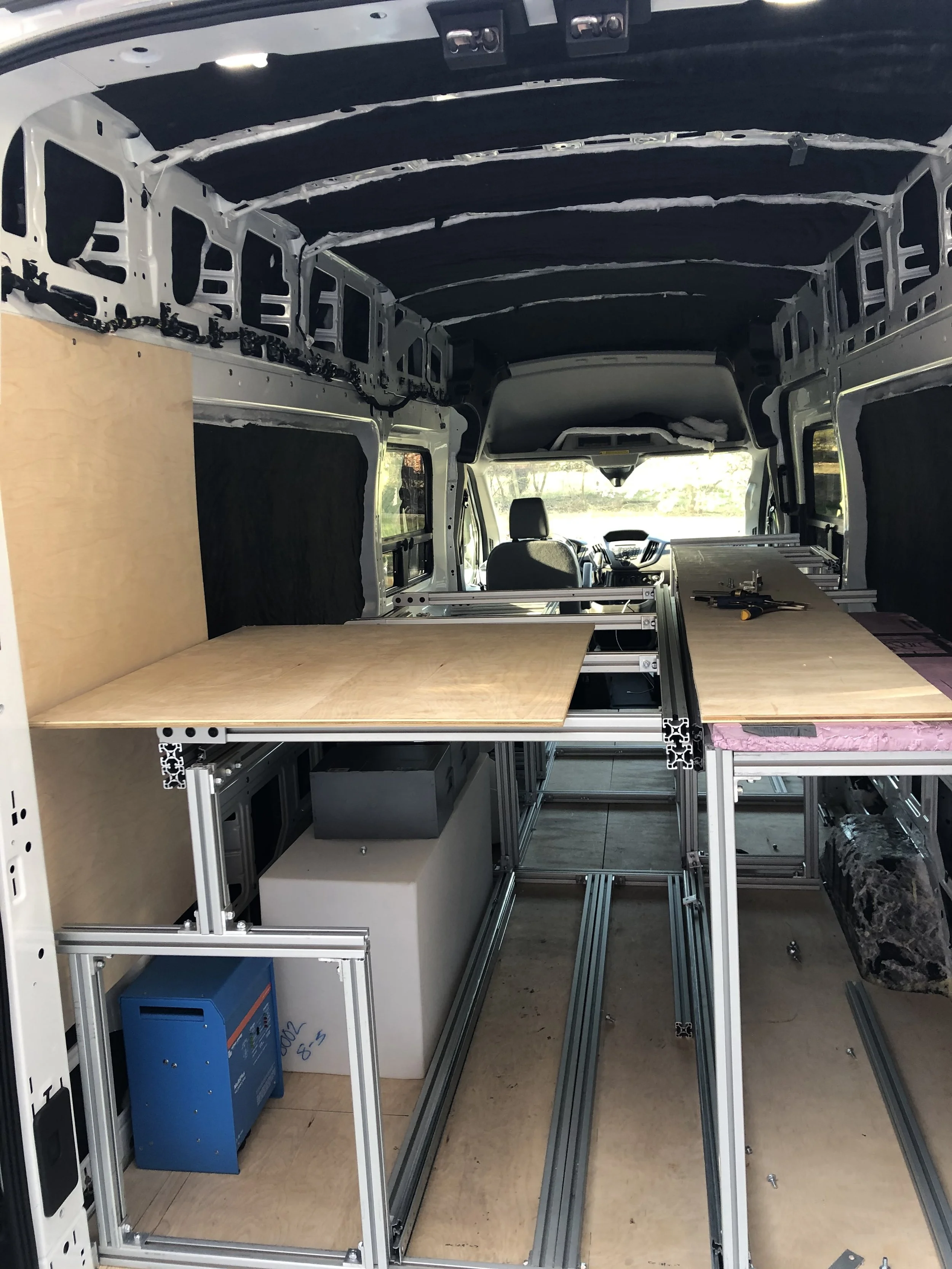

  1. Build the structure

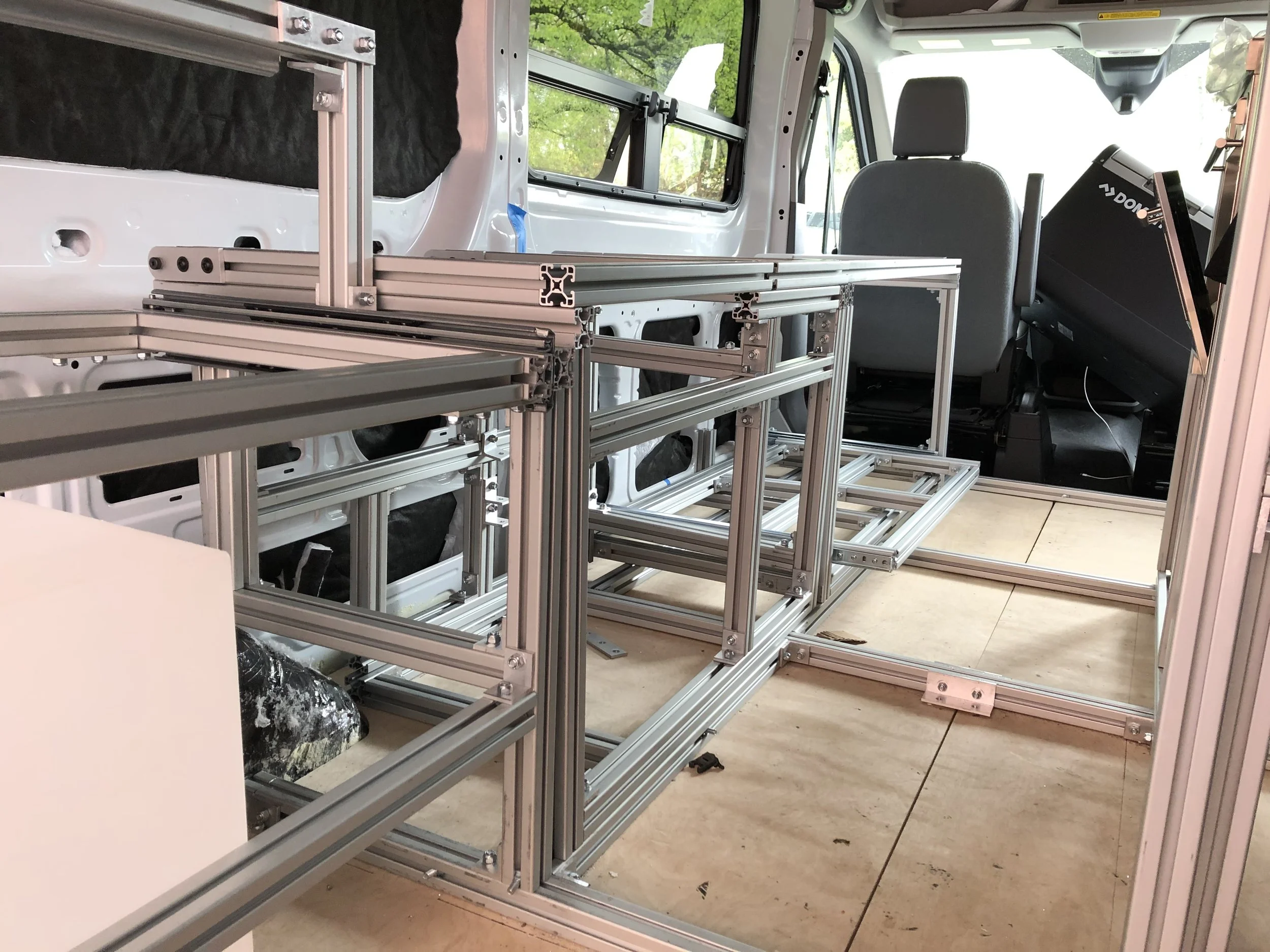

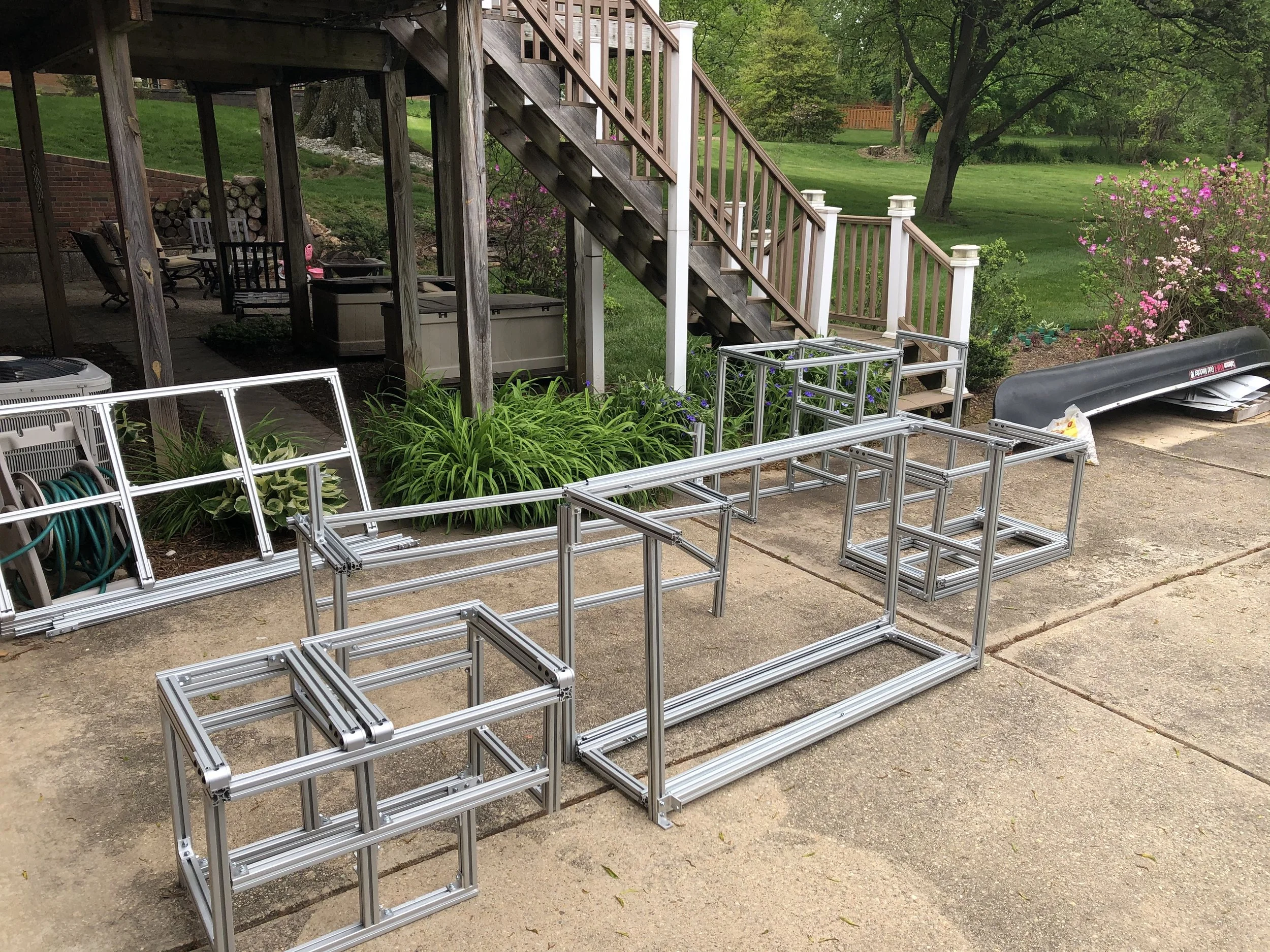

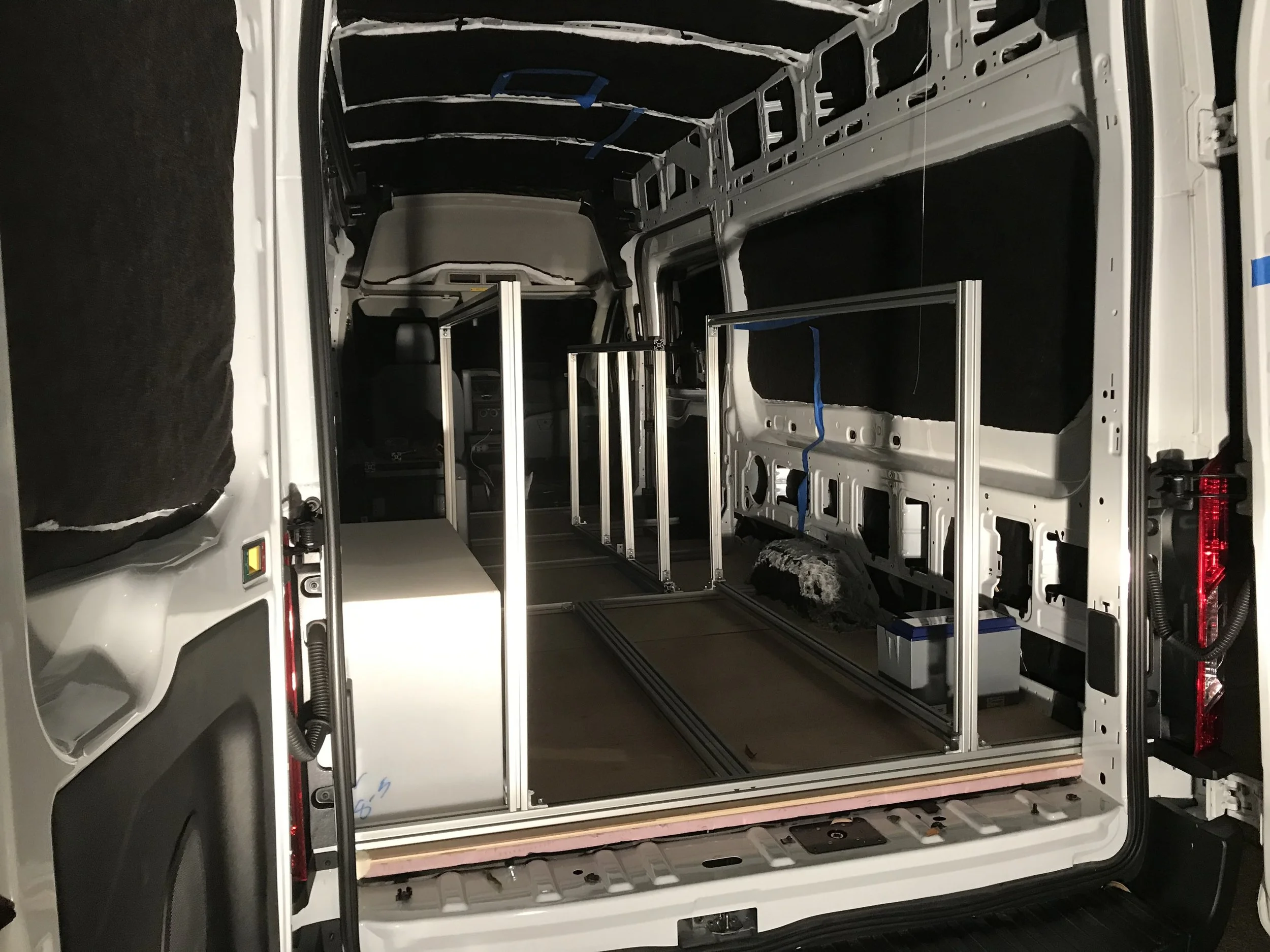

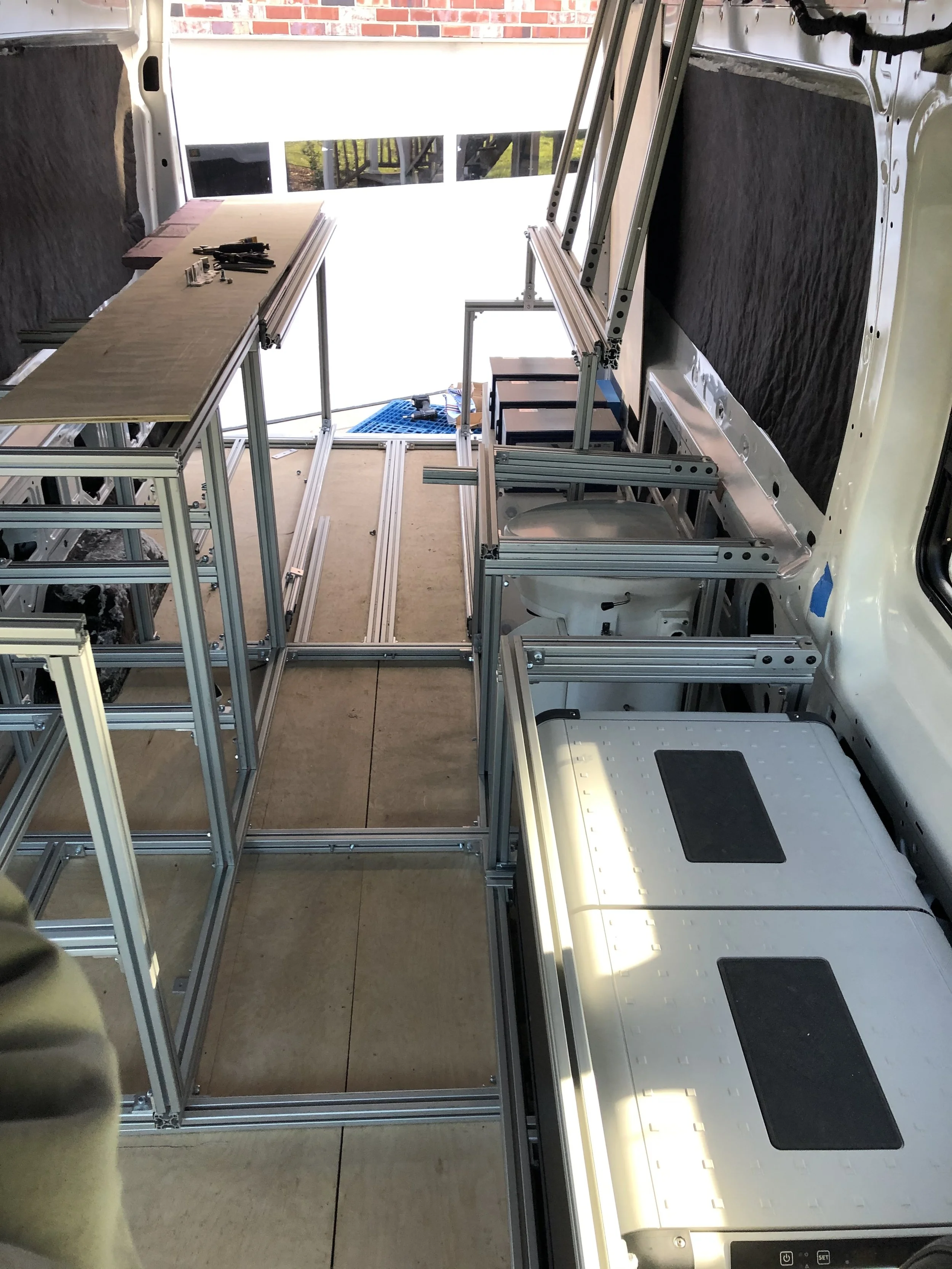

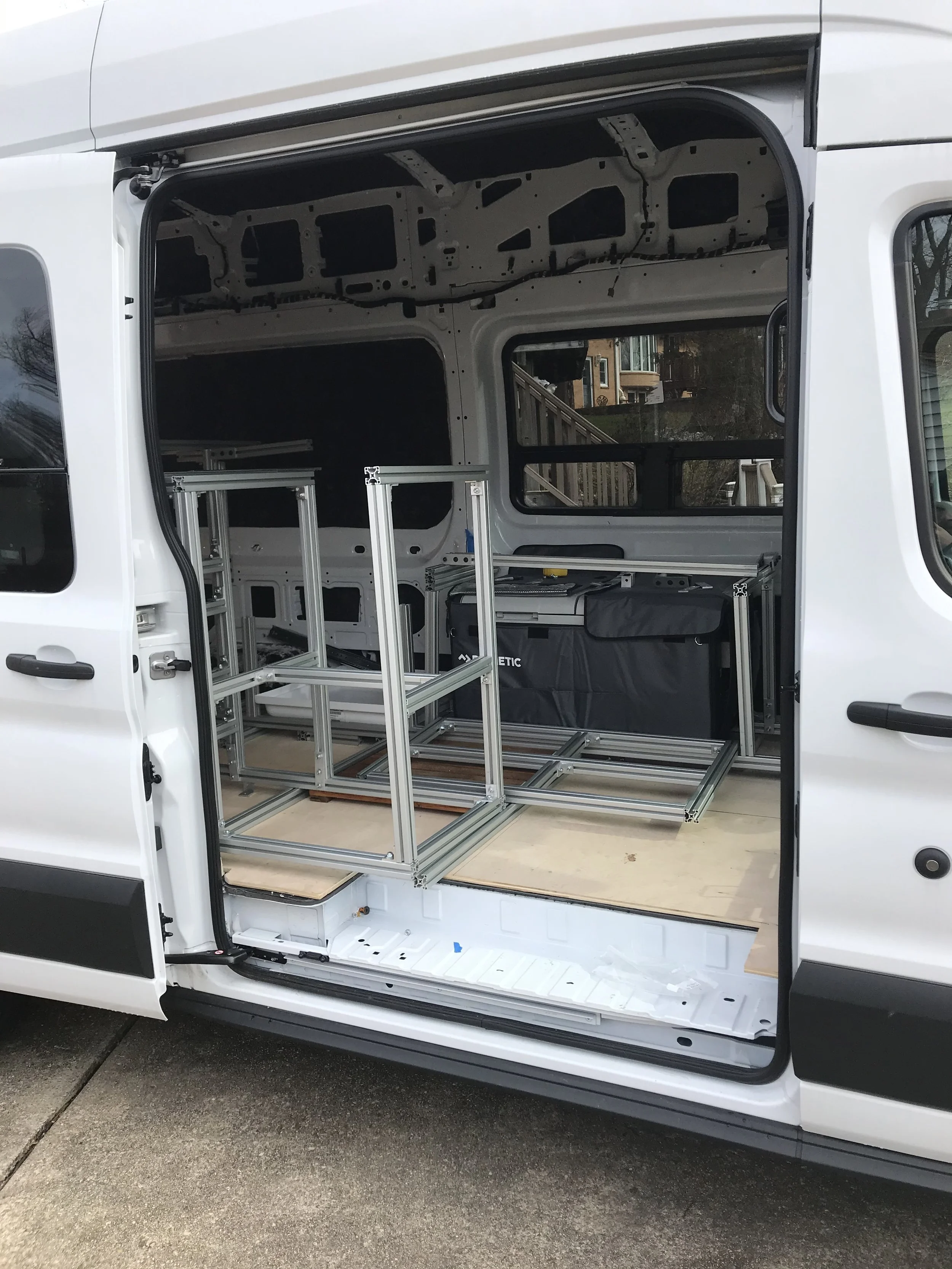

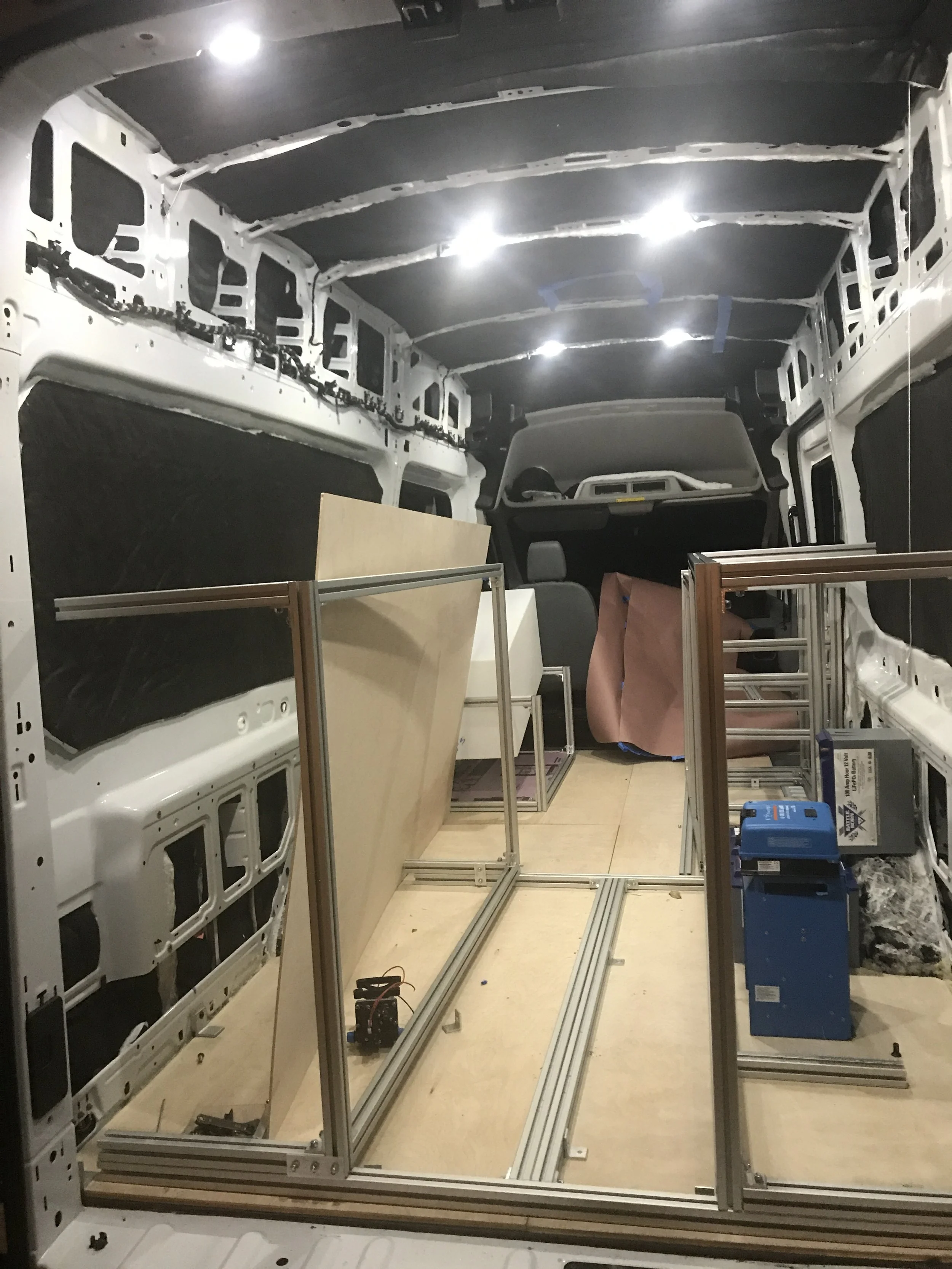

  • Create the entire framework from 80/20 aluminum

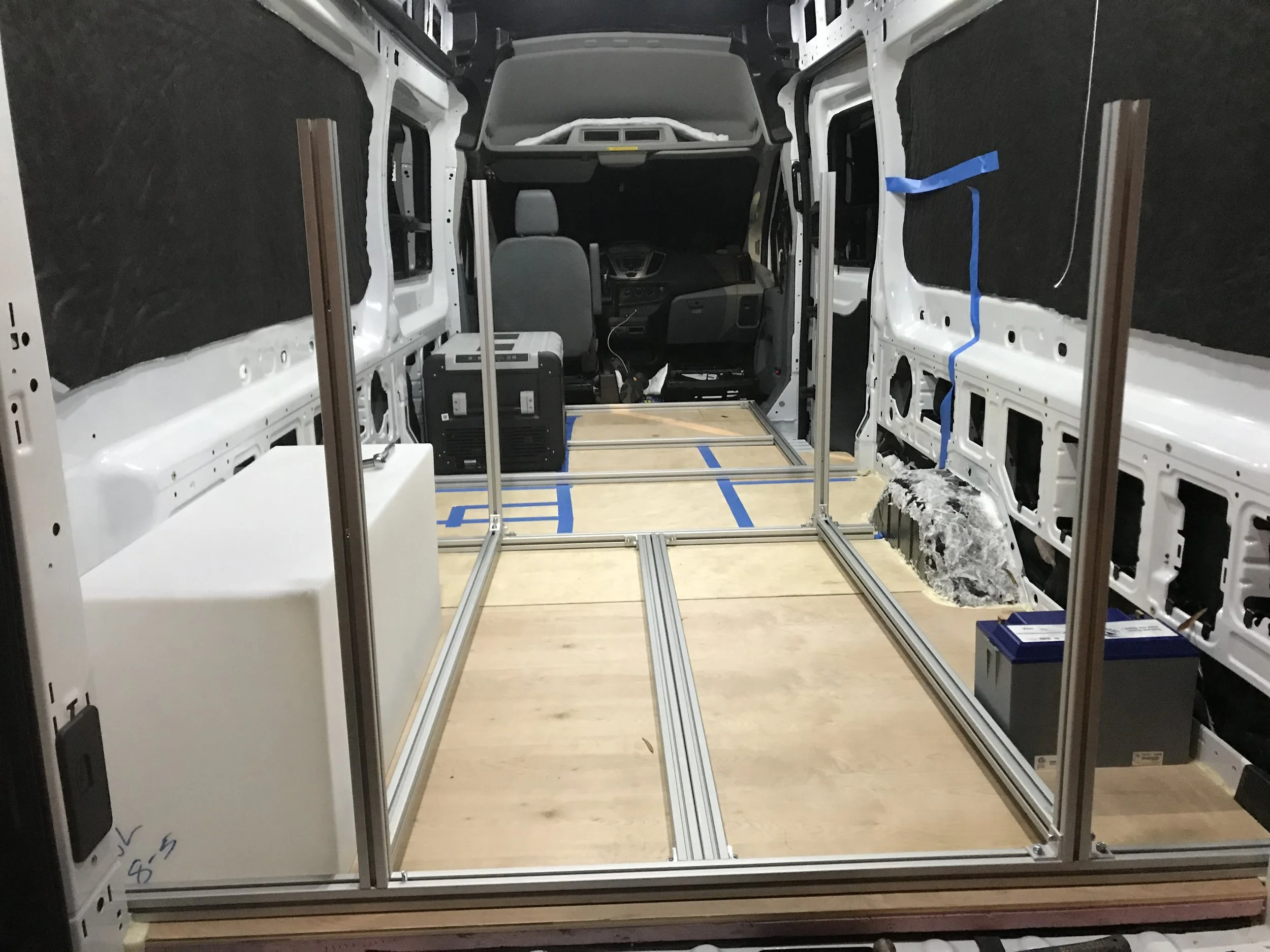

    2. Anchor to floor
    • Secure the structure using wood as thermal insulation

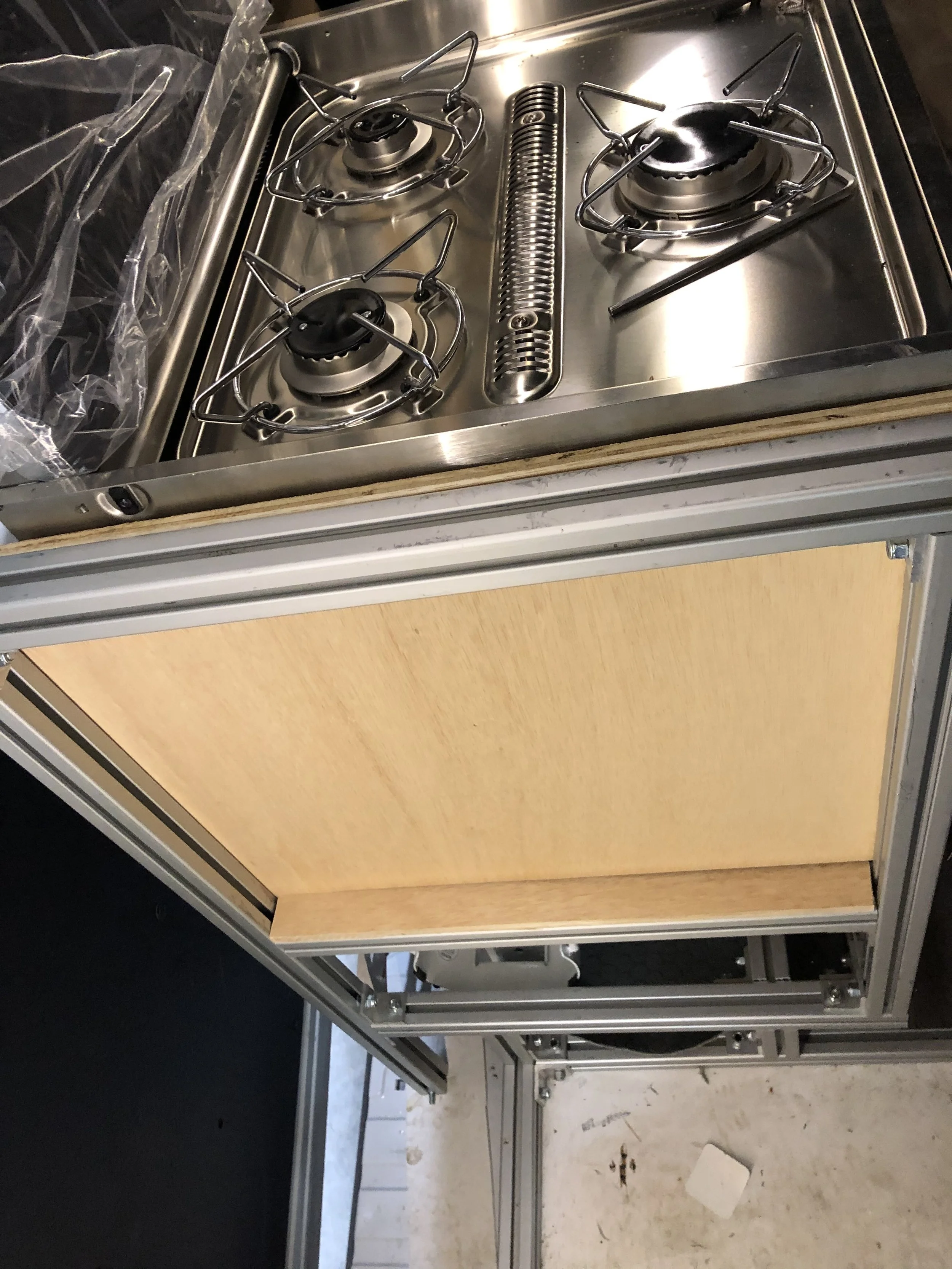

      3. Mount panels

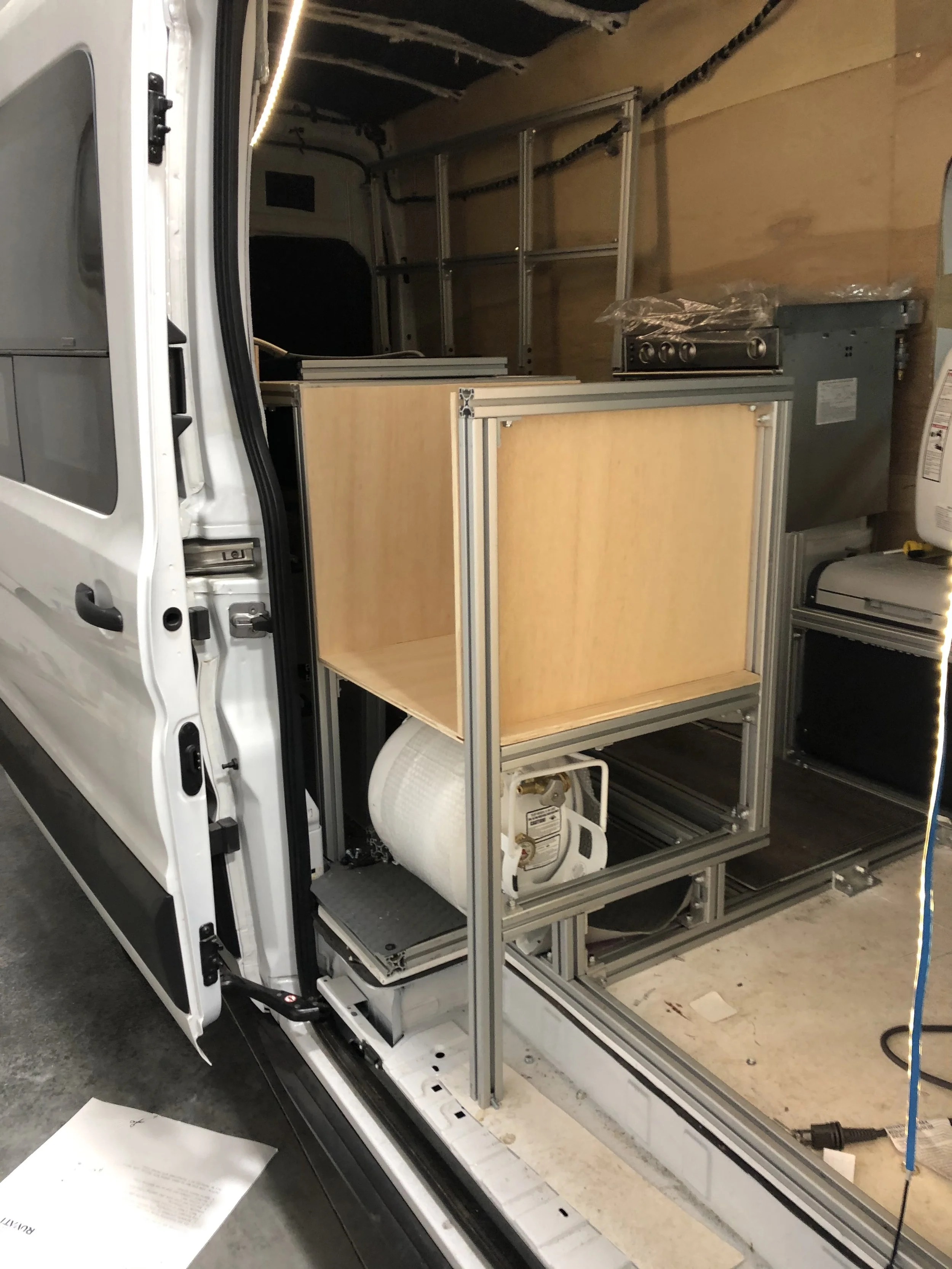

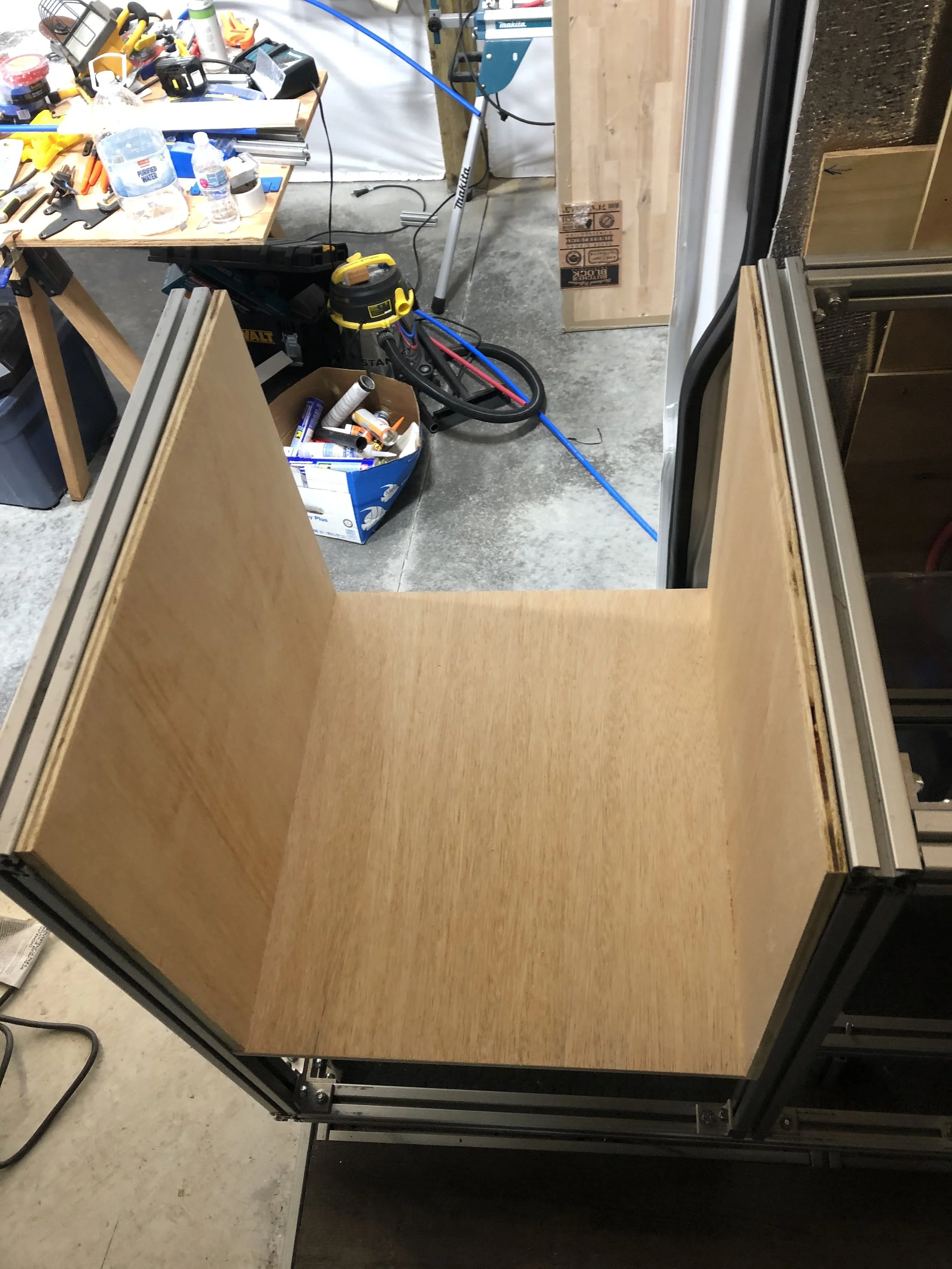

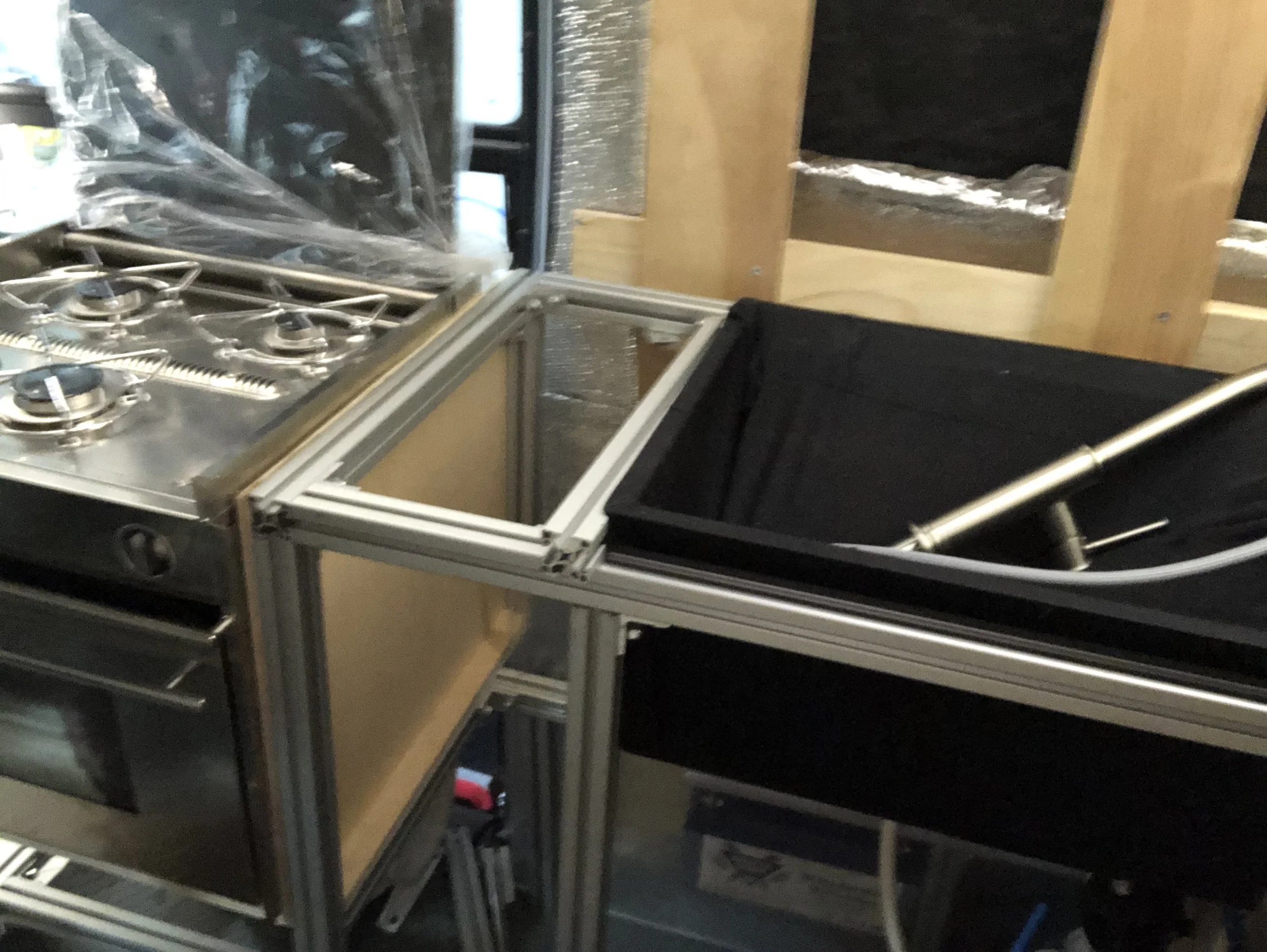

      • Add veneers to create finished cabinetry

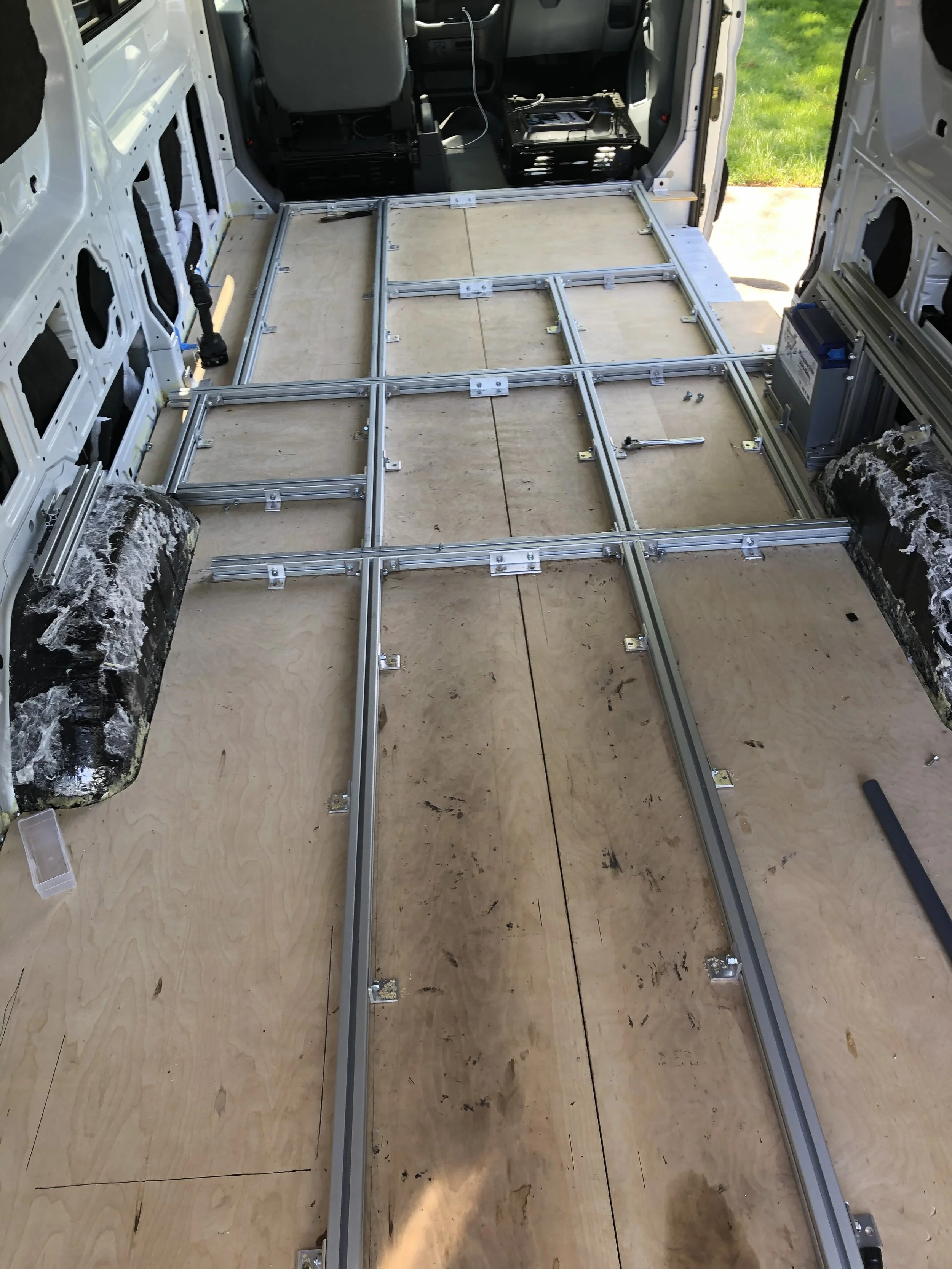

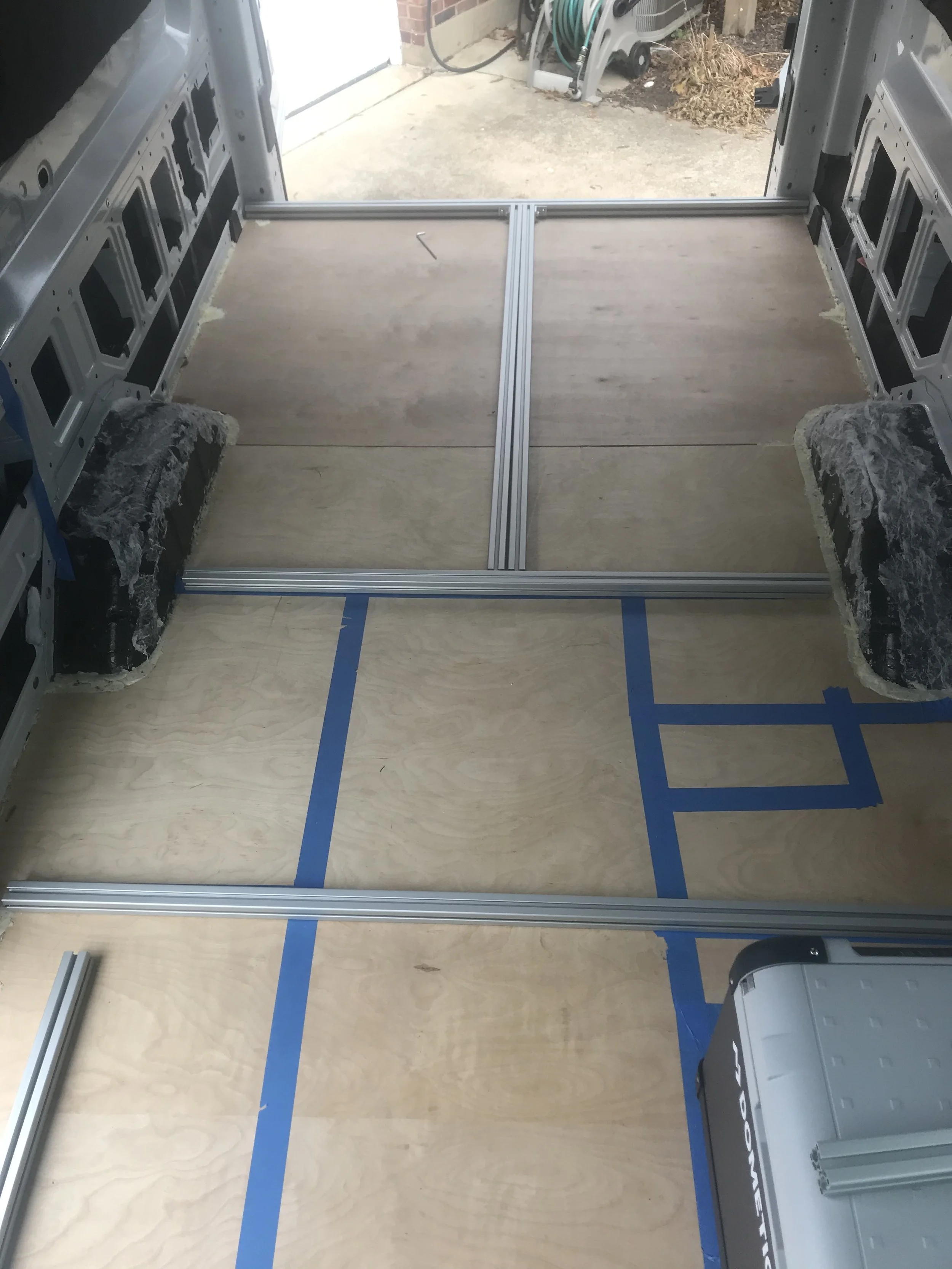

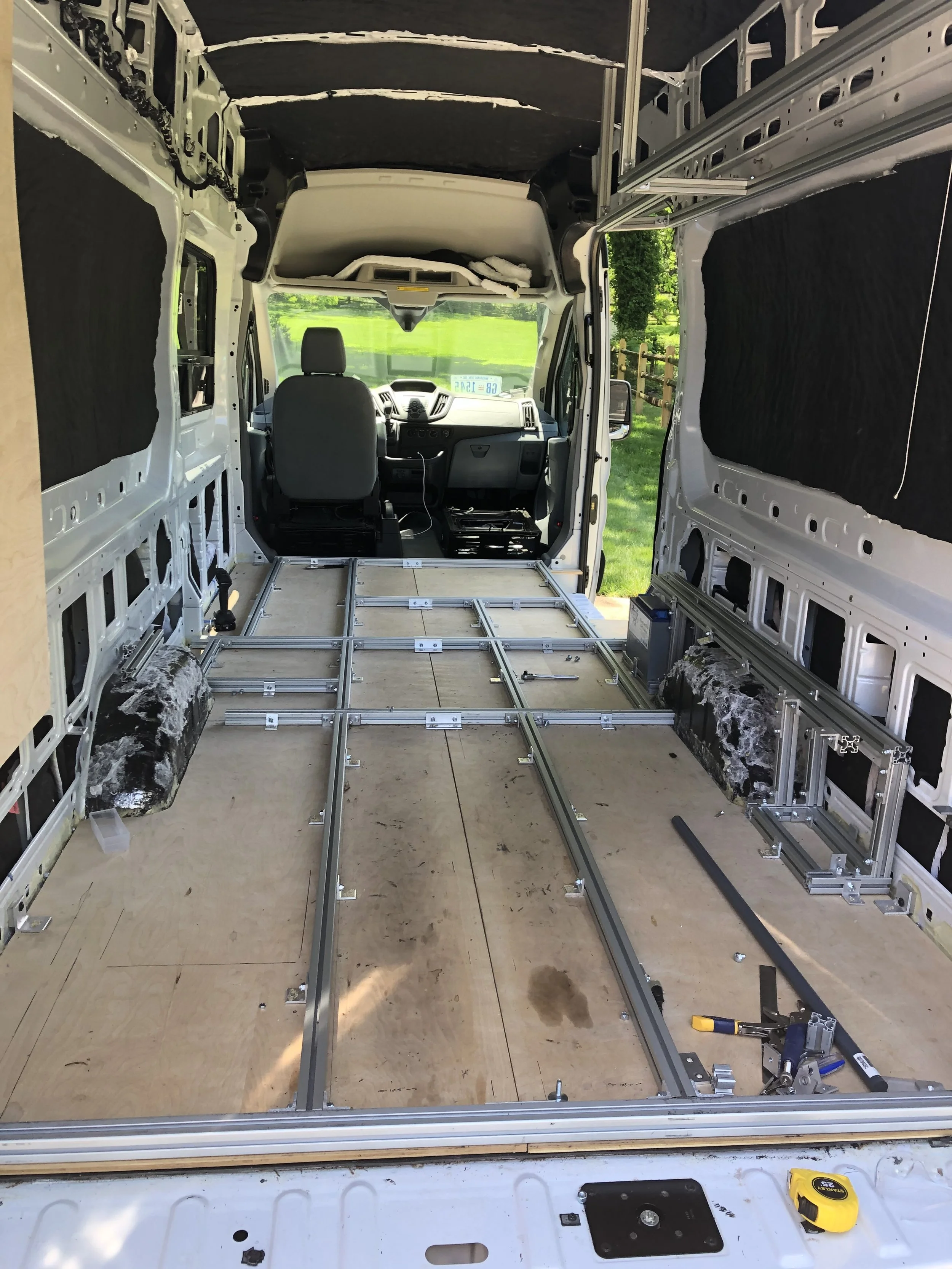

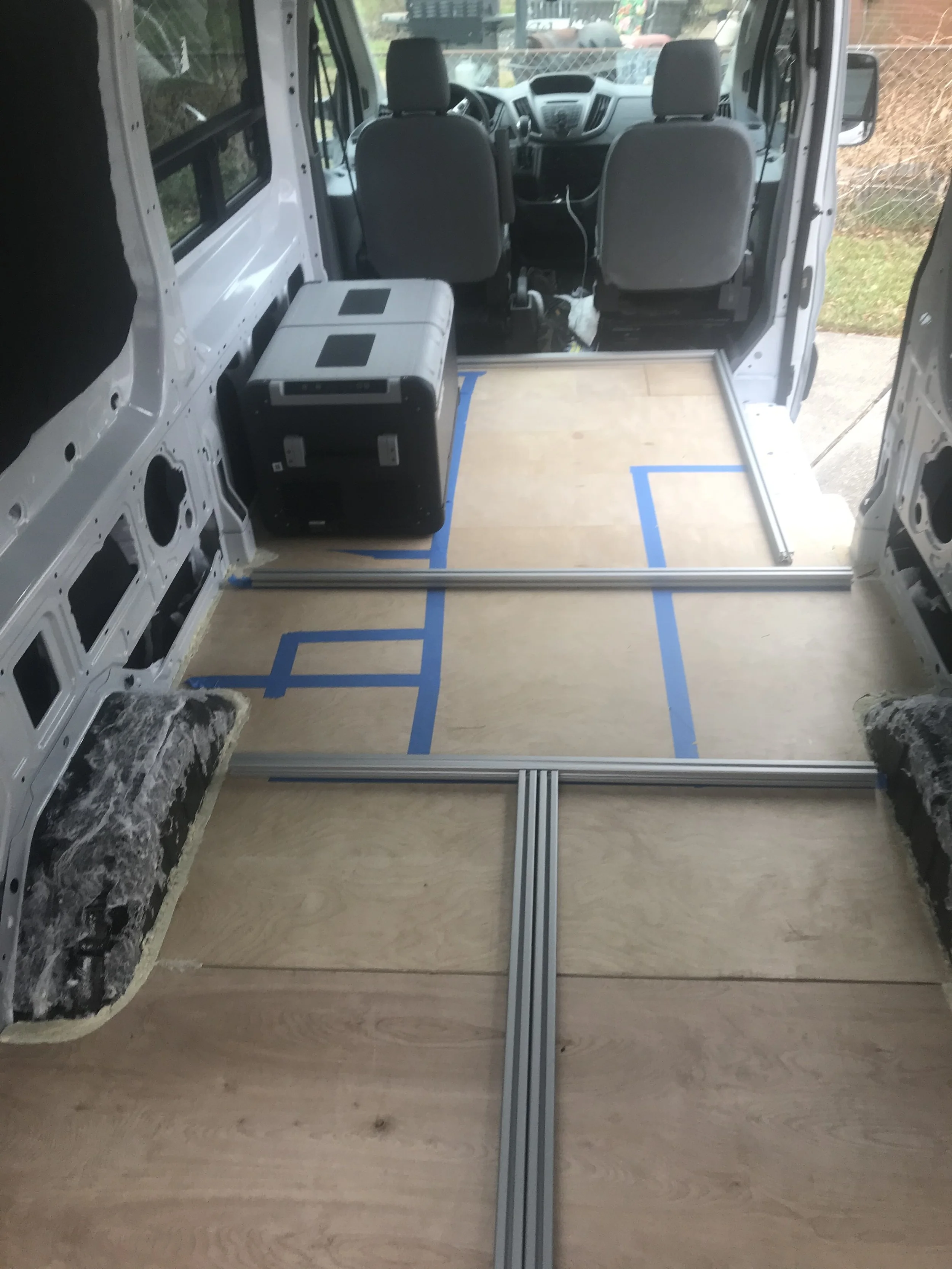

        This approach was heavily influenced by Orton Transit's methodology. The 80/20 floor system is detailed in a separate post: Floor #2.



        Why 80/20?



        • Modularity: Can reconfigure the layout without starting over

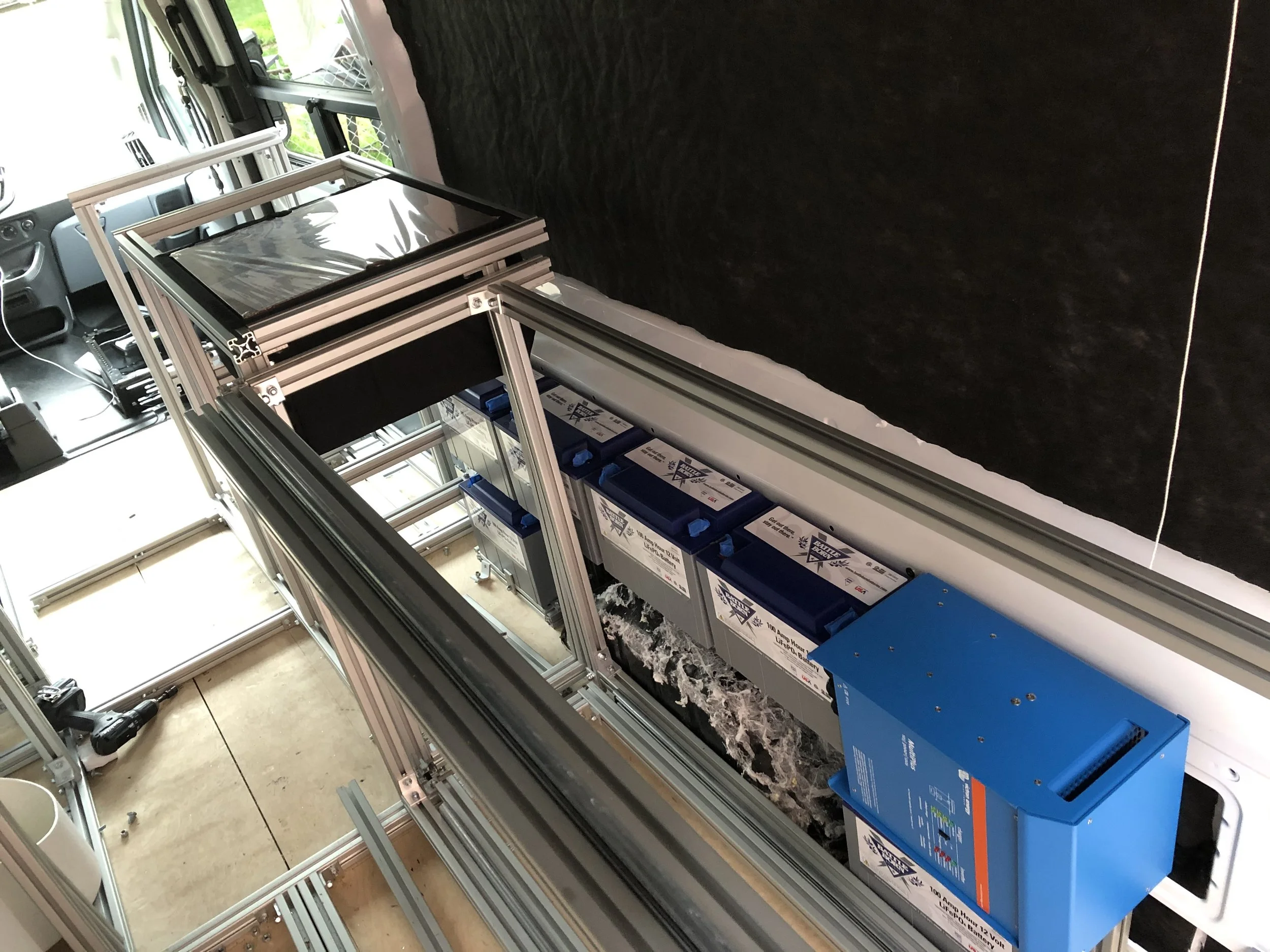

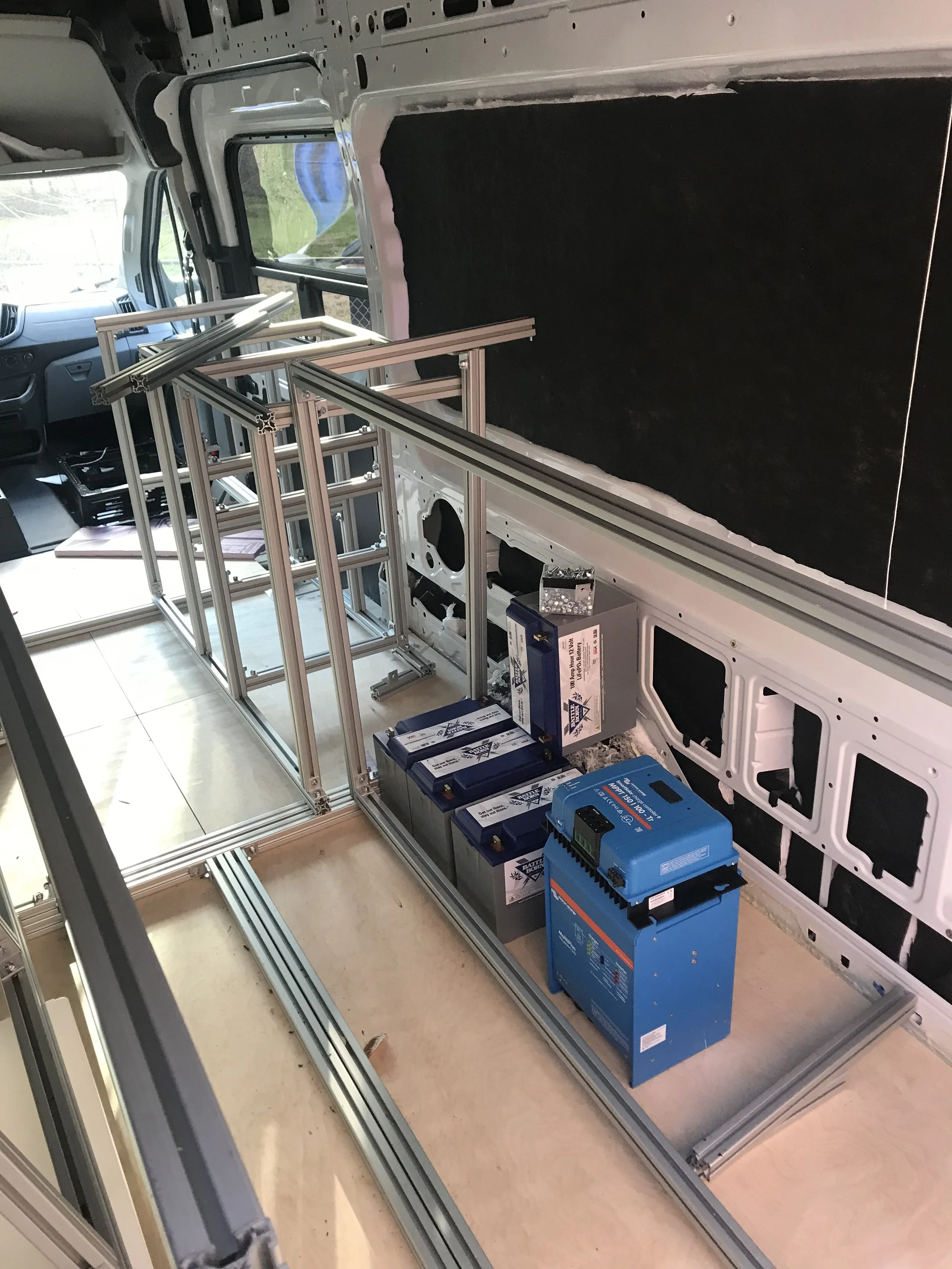

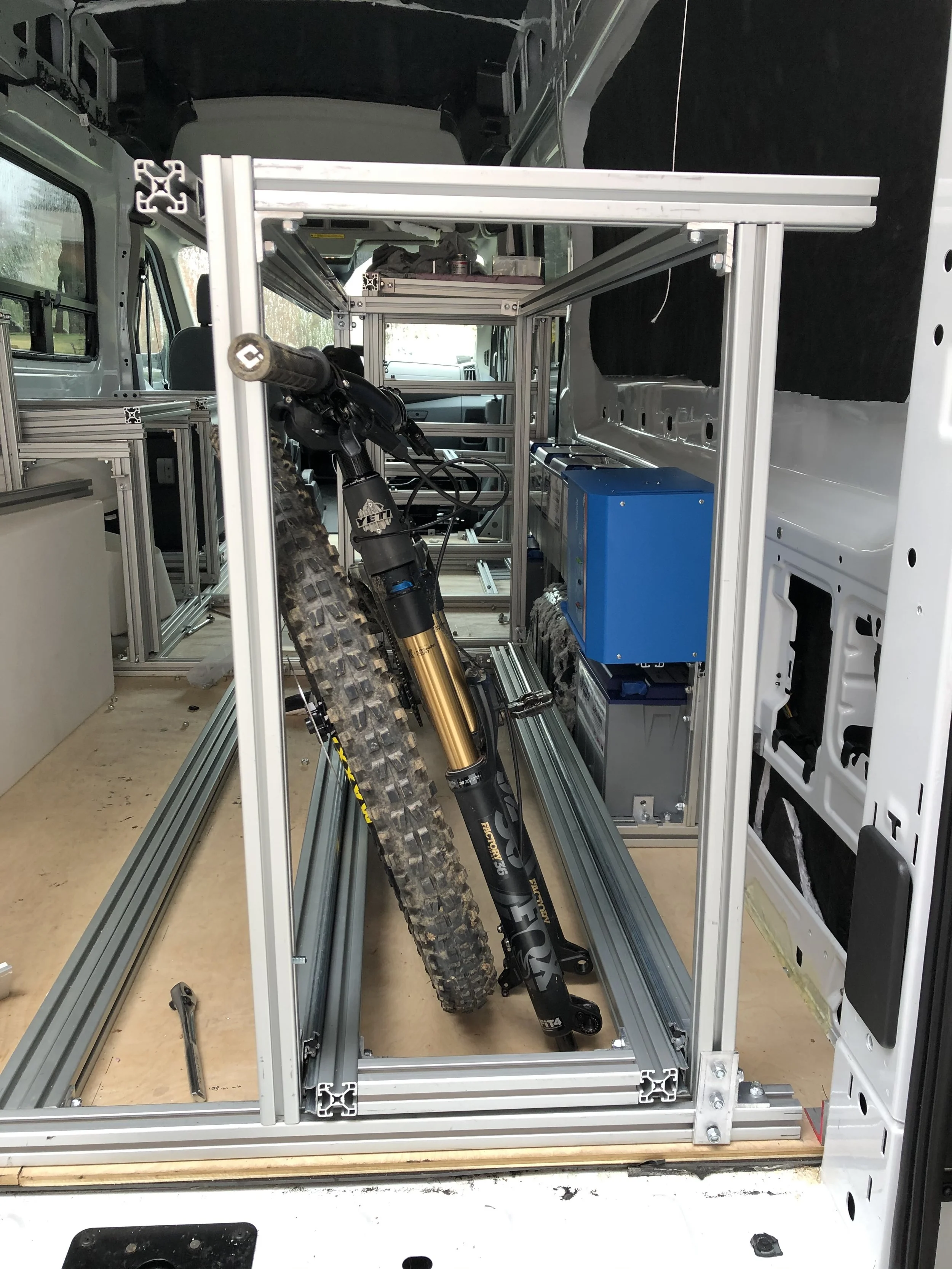

          • Strength: Supports heavy systems like batteries and water tanks

            • Precision: T-slot system ensures square, aligned builds

              • Thermal break: Wood anchors prevent cold transfer from metal floor
