Design & Layout

The Vision

This van was designed as a full-time mobile home for over one year while traveling the western North American coast. Every decision flowed from this core purpose.

Four Core Objectives

#

1. Stealth
The design avoids obvious recreational vehicle characteristics. No external racks, no visible RV features. The goal: blend into urban environments seamlessly.

#

2. Full-Time Habitation
The space needed to support:

• Remote work activities

  • Three daily meals (full meal preparation)

    • General daily living requirements

      • Comfortable long-term occupancy

        #

        3. Year-Round Climate Control
        Integrated systems for:


        • Heating (Webasto propane heater)

          • Ventilation (MaxxAir fan, windows)

            • Cooling (air conditioning)

              • Insulation (Thinsulate throughout)

                #

                4. Activity Support
                The interior accommodates gear for:


                • Mountain biking

                  • Snowboarding

                    • Climbing

                      • Surfing

                        • Onewheel transportation



                          Design Development Process

                          I employed a four-stage prototyping methodology:

                          #

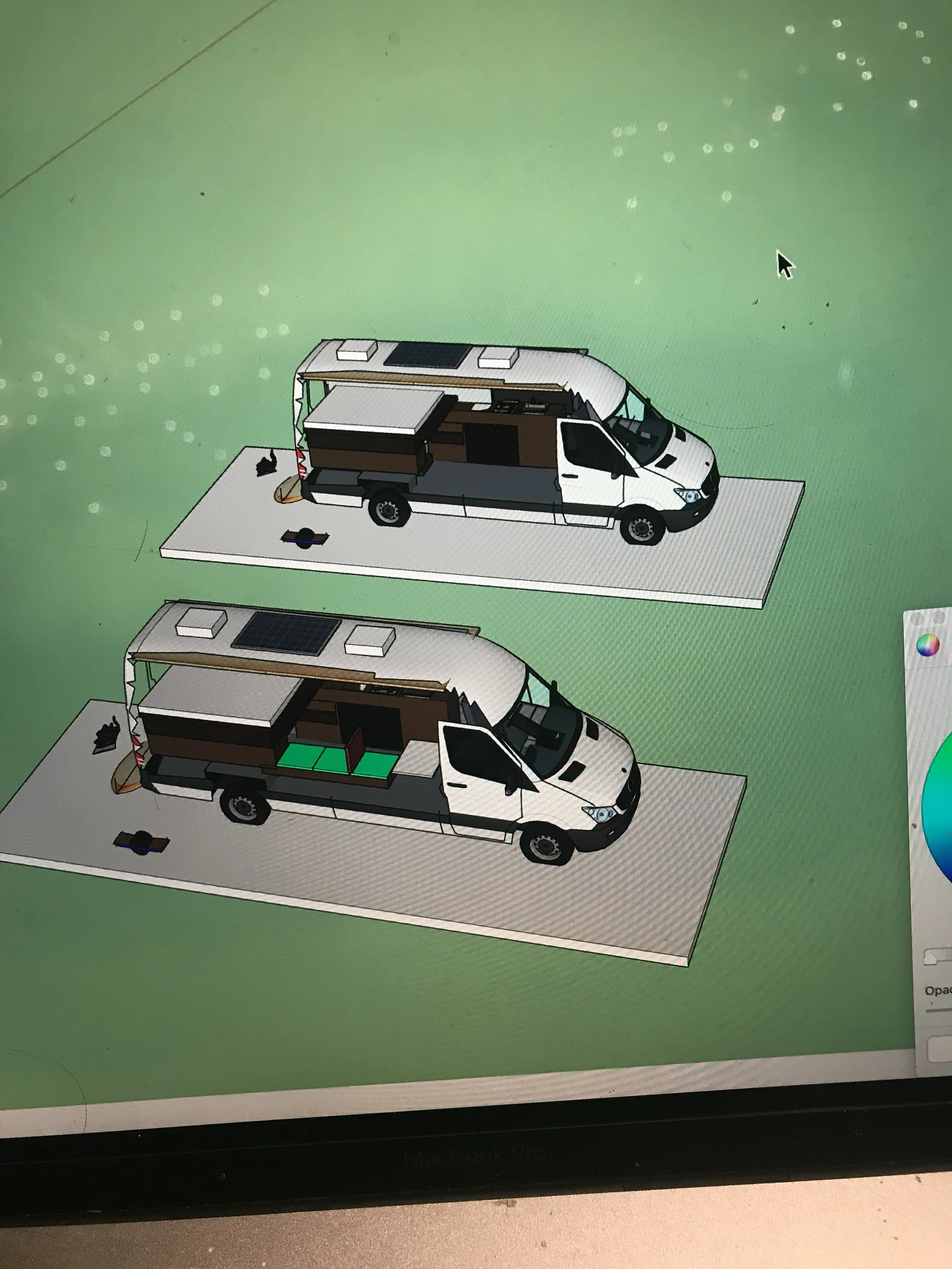

                          1. 3D Modeling

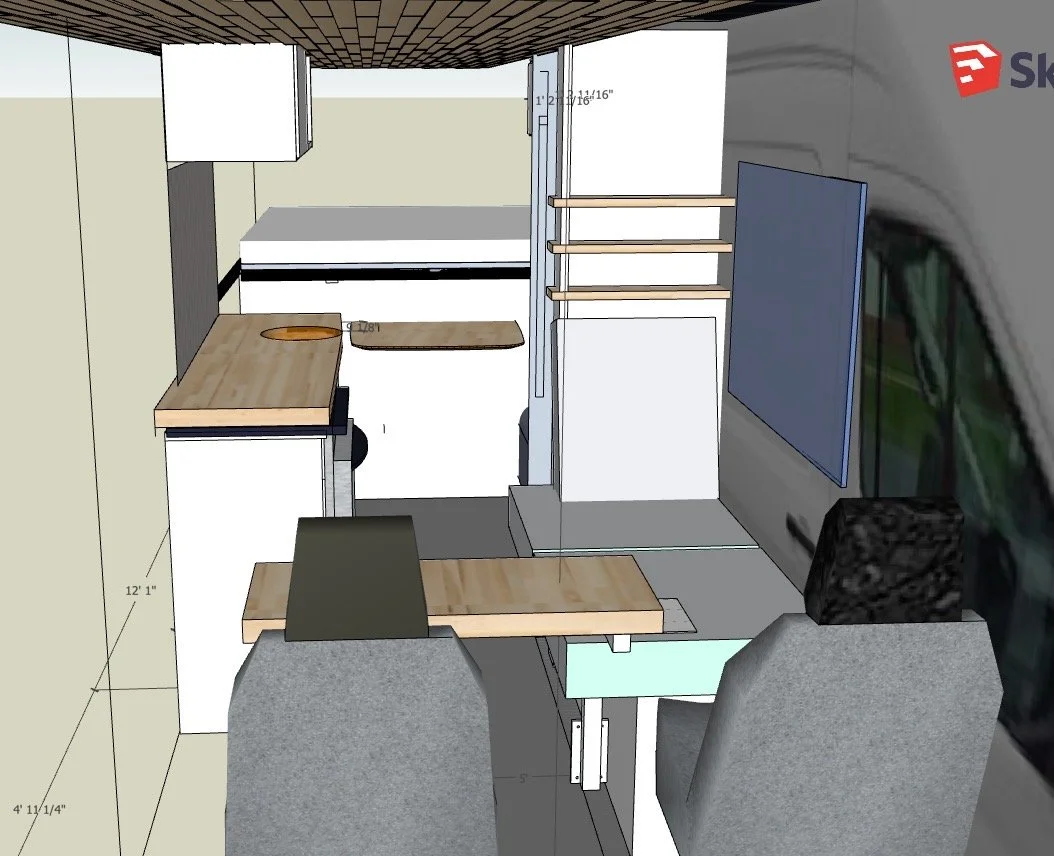

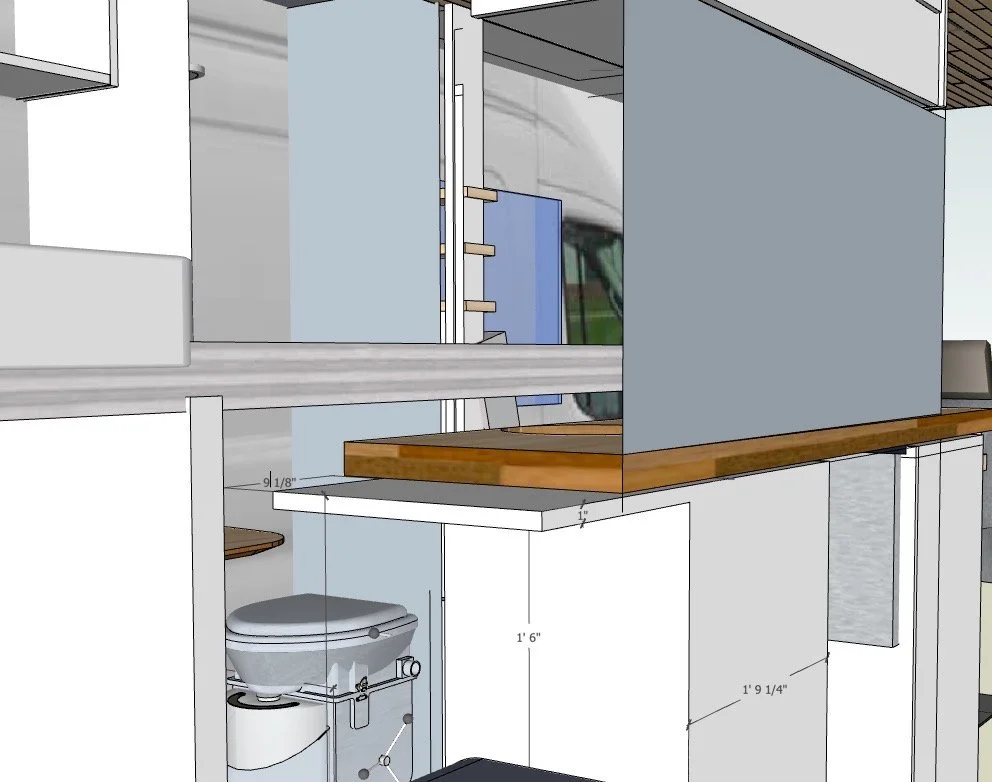

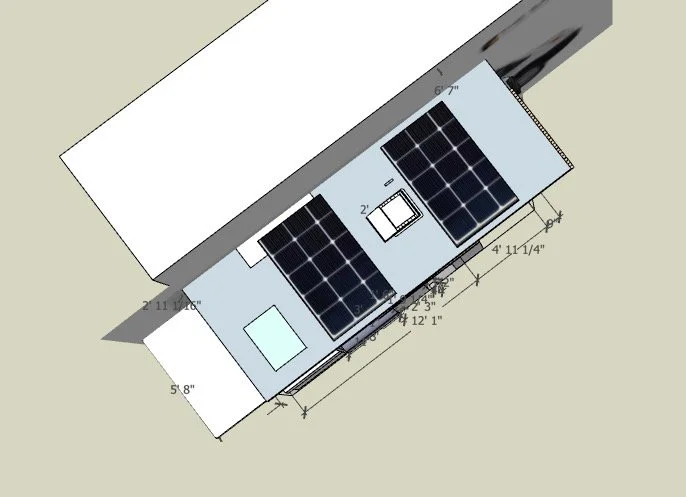

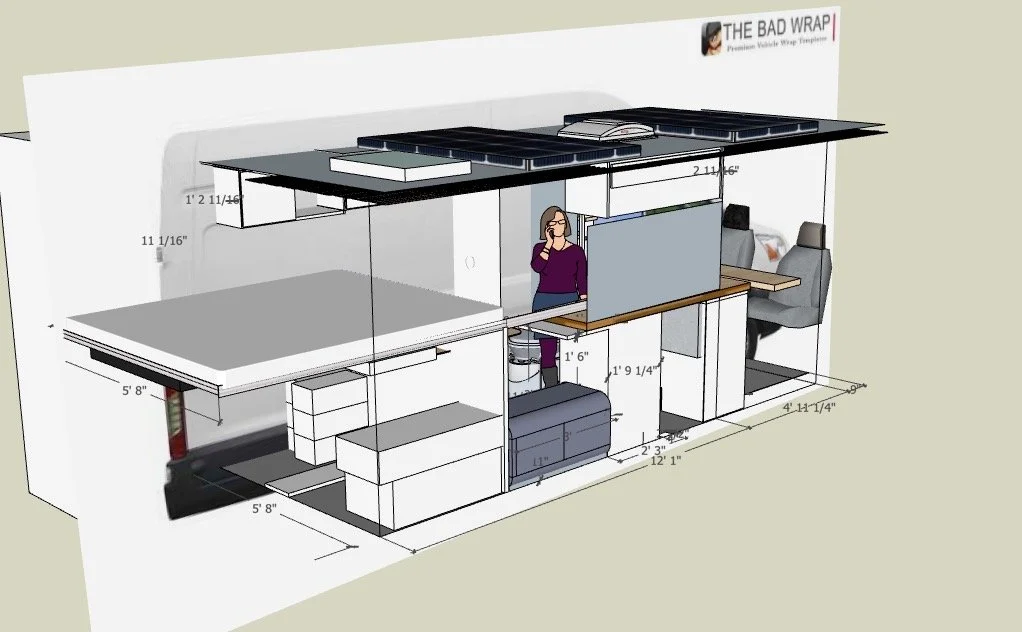

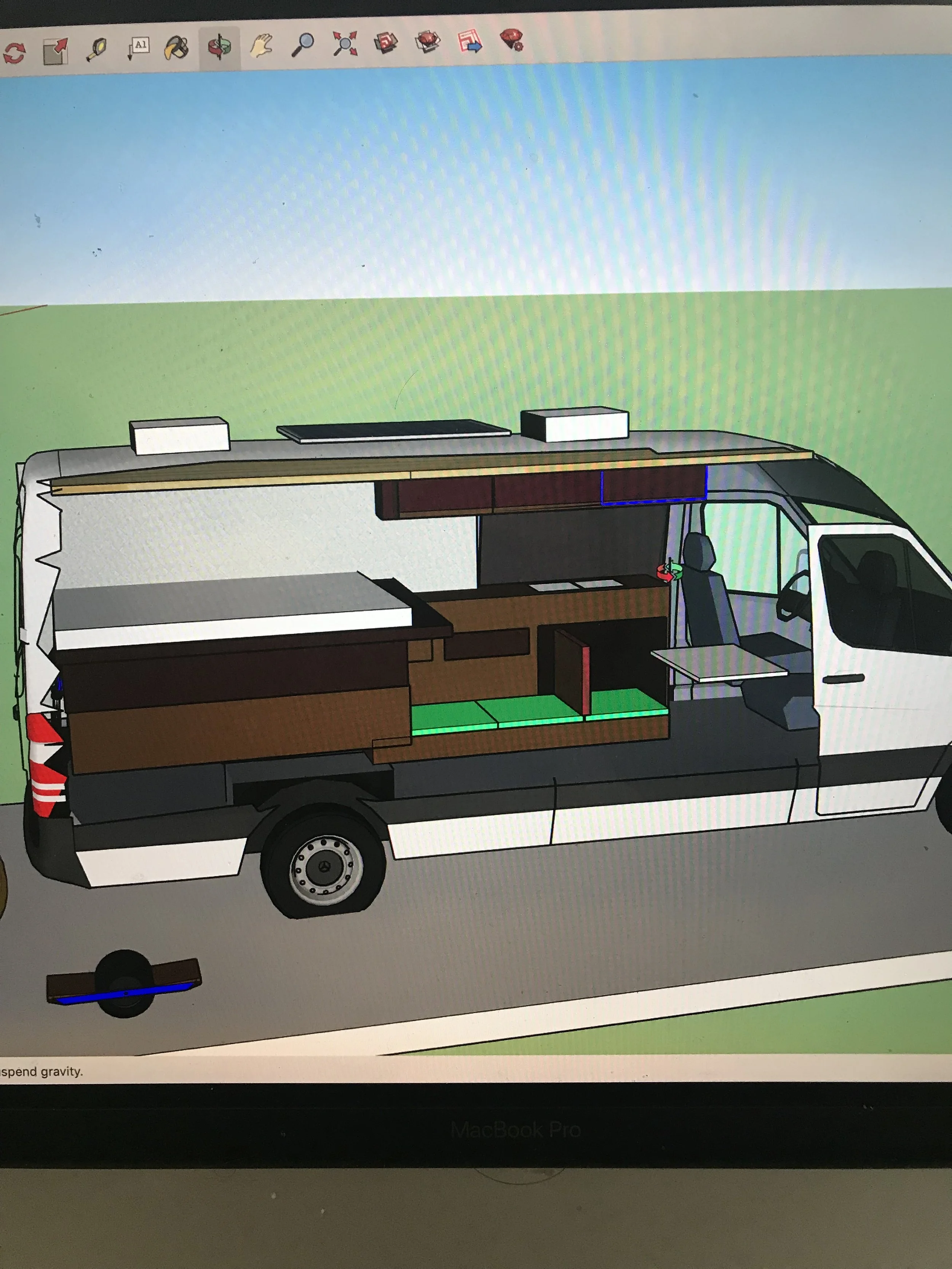

                          Used SketchUp software to explore layout variations and material options without physical commitment. This allowed rapid iteration and visualization.

                          #

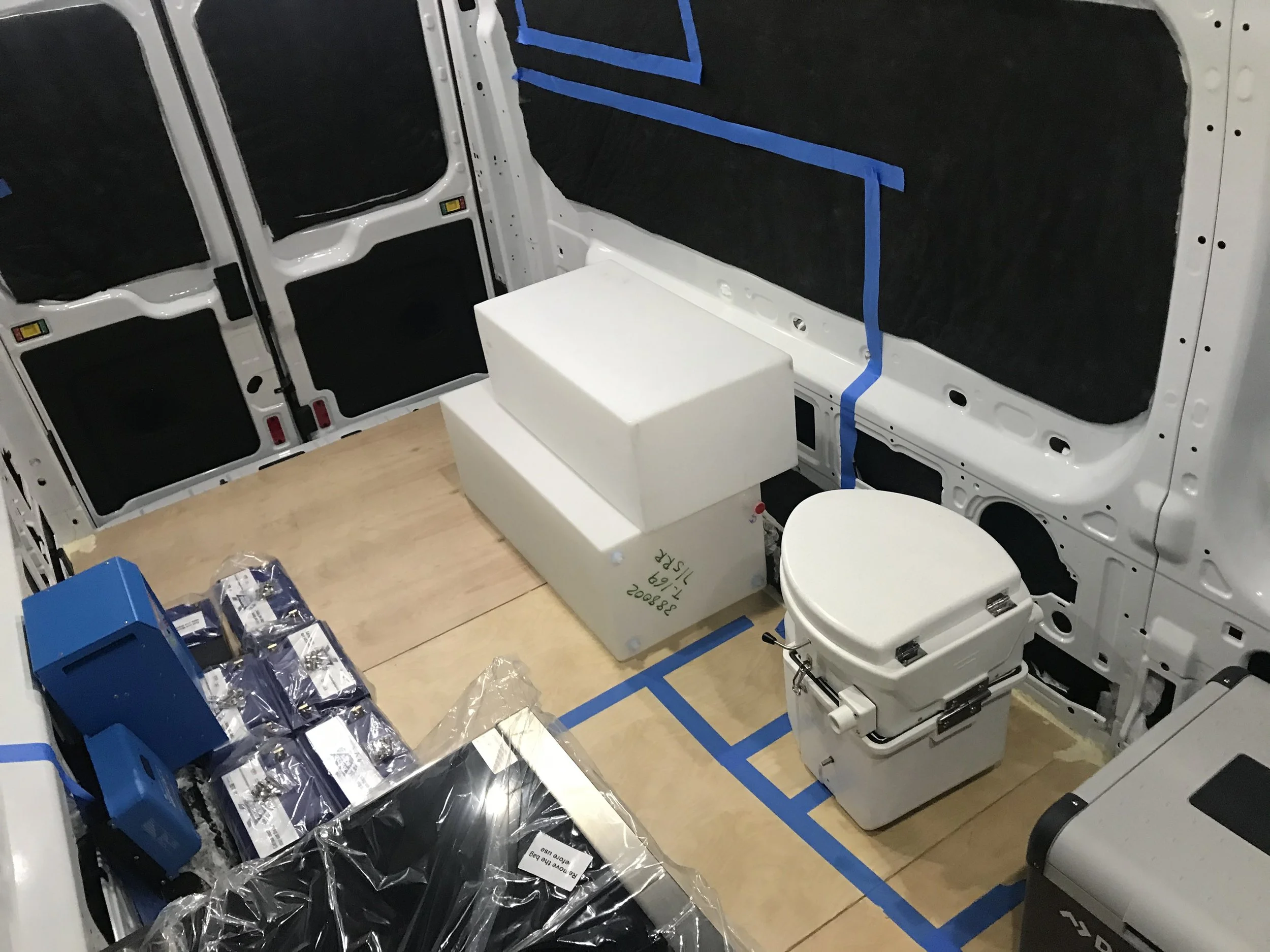

                          2. Physical Mockup

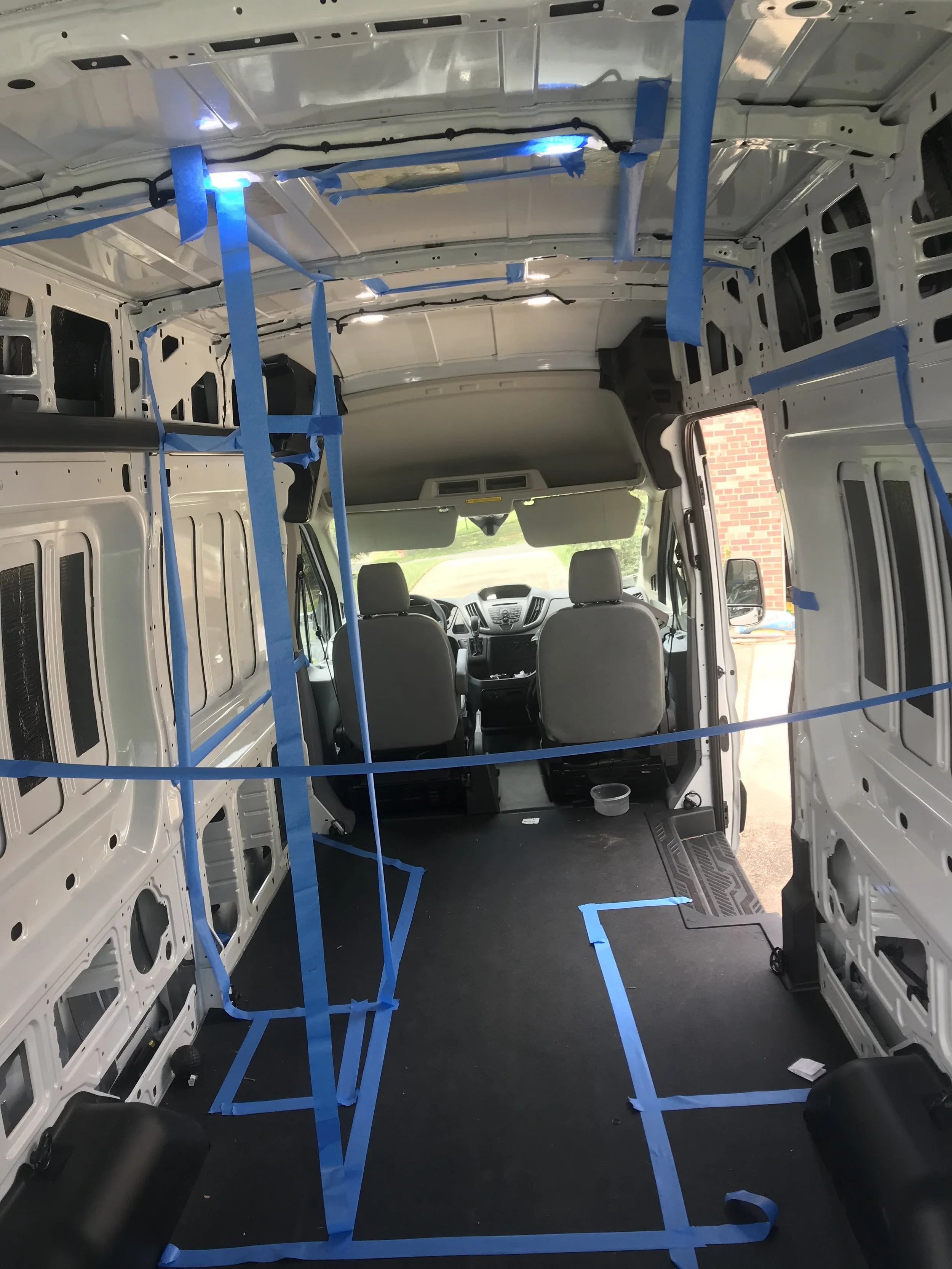

                          Tape-based spatial layout testing in the empty van. This revealed crucial insights:


                          • Rejected: Fixed shower compartments

                            • Rejected: Internal dividing walls

                              • Embraced: Open, flexible layout

                                #

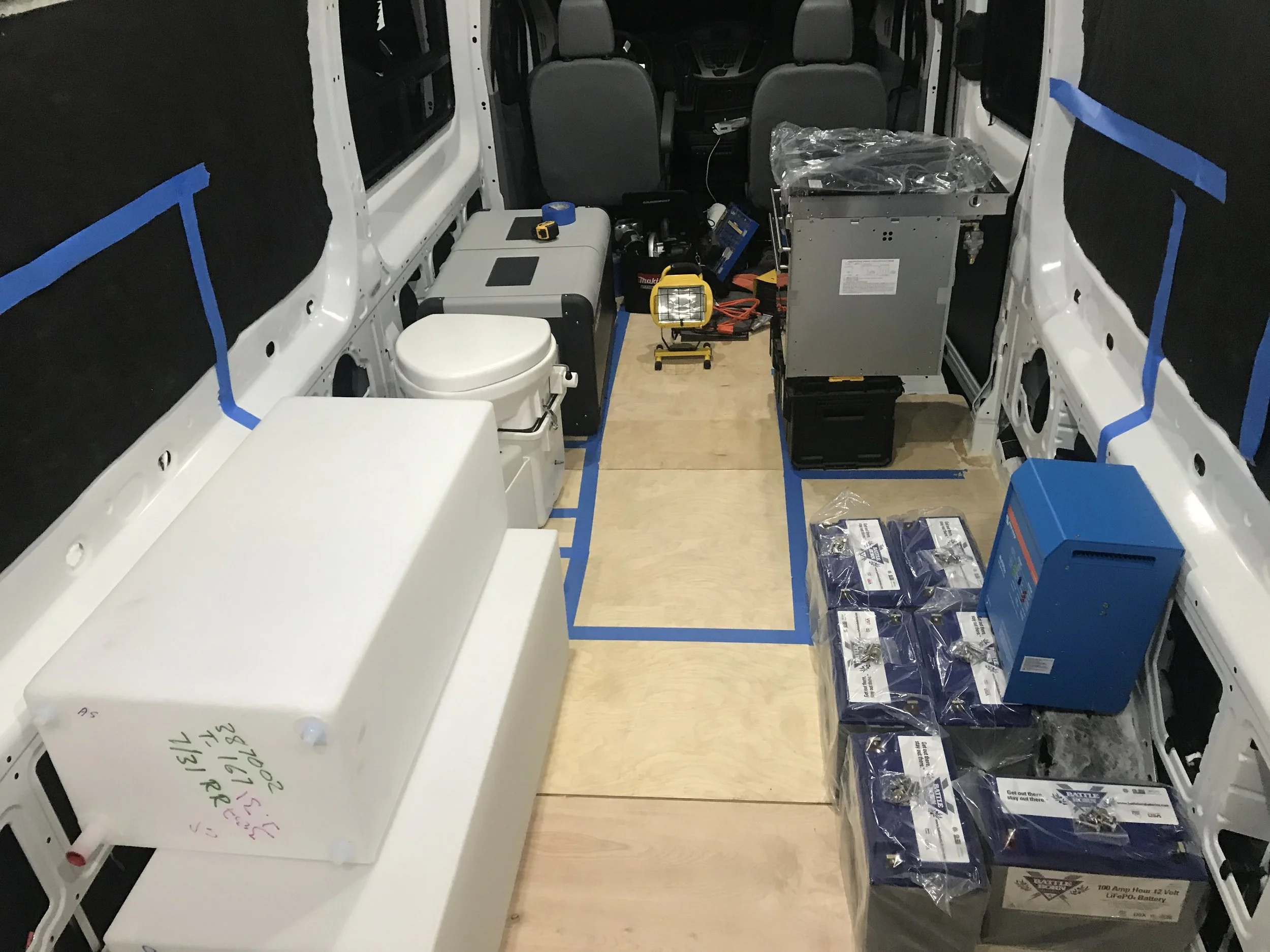

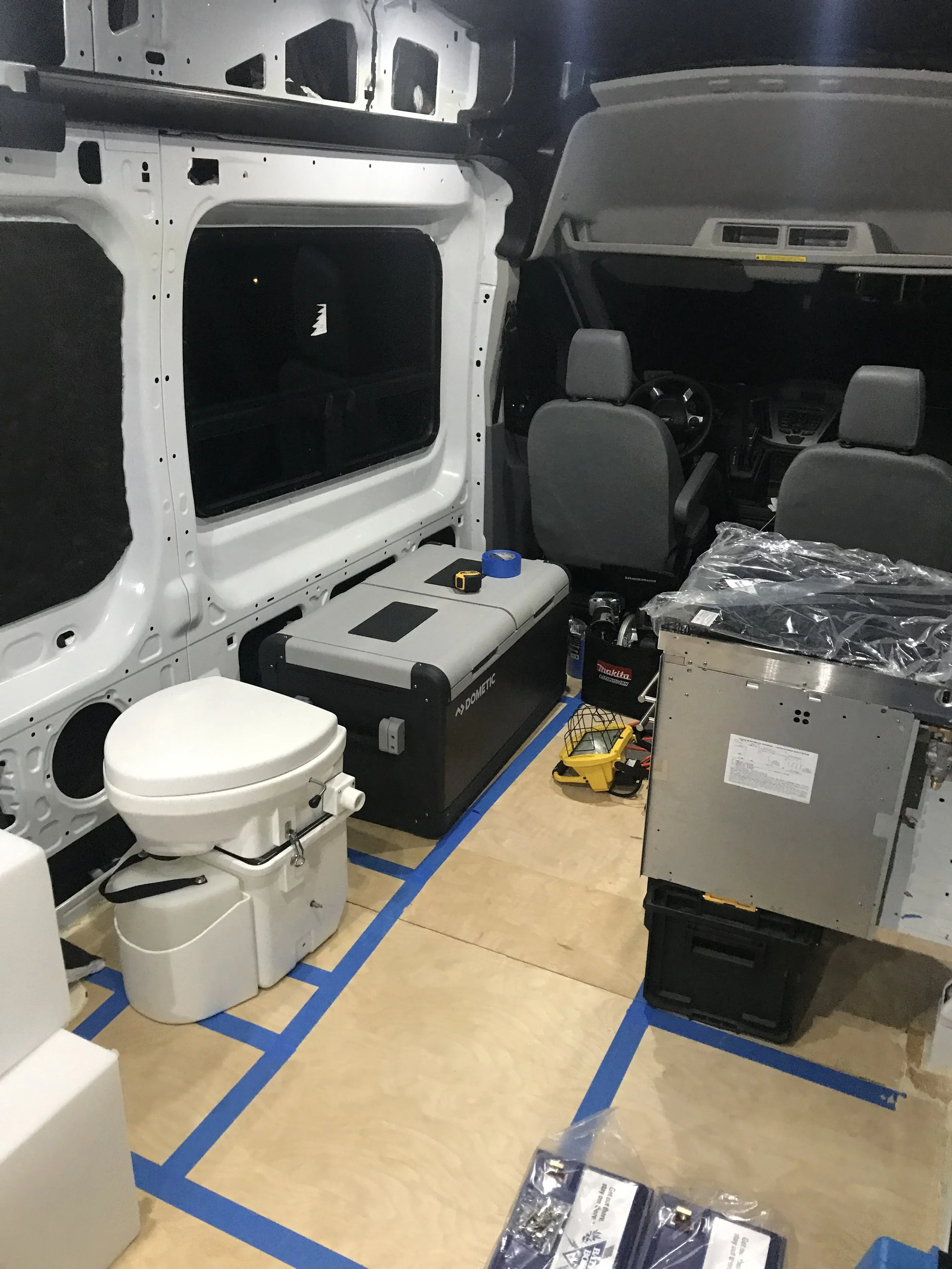

                                3. Component Arrangement
                                Layout planning after ordering parts, ensuring everything fit correctly before permanent installation.

                                #

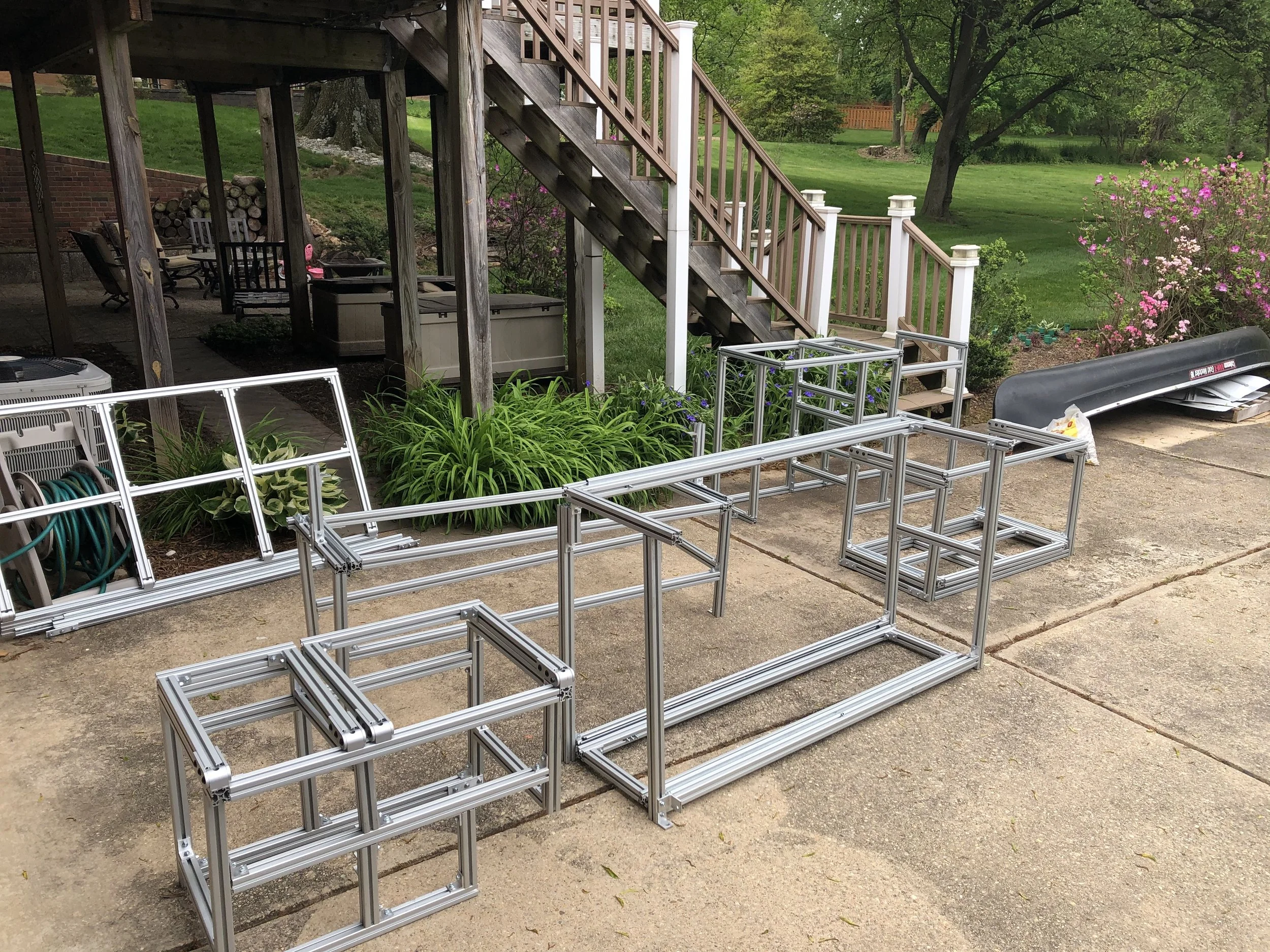

                                4. Framework Construction
                                Structural building using 80/20 aluminum (detailed in separate Framing post).



                                Key Philosophy

                                Start with why, then how. Understanding the purpose drove every technical decision. This wasn't a weekend warrior van

                                • it needed to be a legitimate home.
